Fuji Xerox DocuCentre S2420

Machine Components
67
Product Overview
3

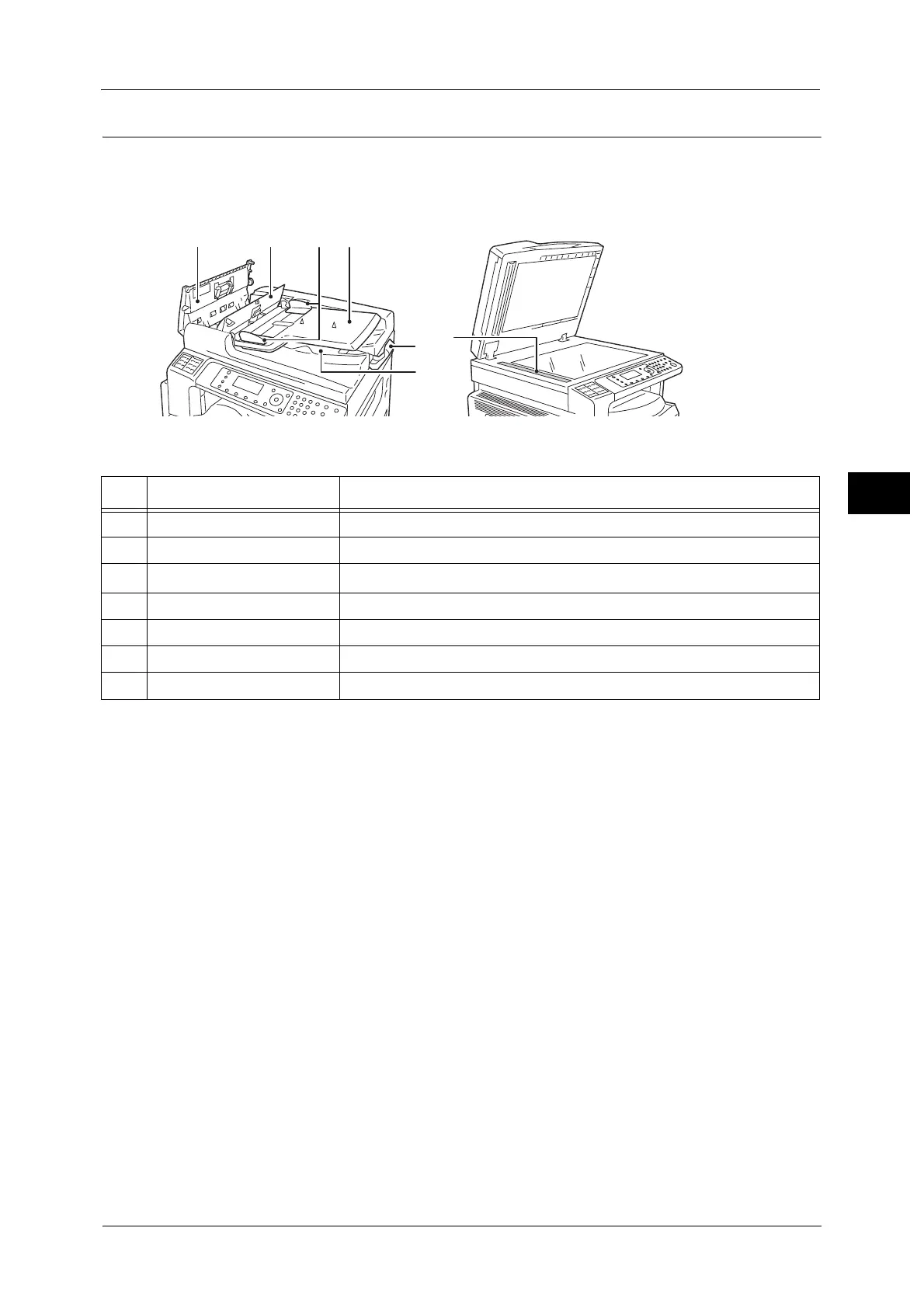

Duplex Automatic Document Feeder (Optional)
Note • In this guide, the duplex automatic document feeder is referred to as the "document feeder".
5
6
7
1
3
4
2
No. Component Description
1 Document feeder cover Open this cover to remove any jammed paper.
2 Inner cover Open this cover to remove any jammed paper.
3
Document guides
Aligns the edges of document.
4 Document feeder tray Load document here.
5 Document stopper Prevents outputs from falling off.
6 Document output tray Outputs are delivered here.
7 Narrow glass strip Scans a placed document.
