Paper Jams at the Knob 2c, the Levers 2e/2f, and the Tri-fold Output Tray 2d when D2
Folder Unit is Installed
1
Make sure that the machine has stopped
before opening the right cover of the finisher.

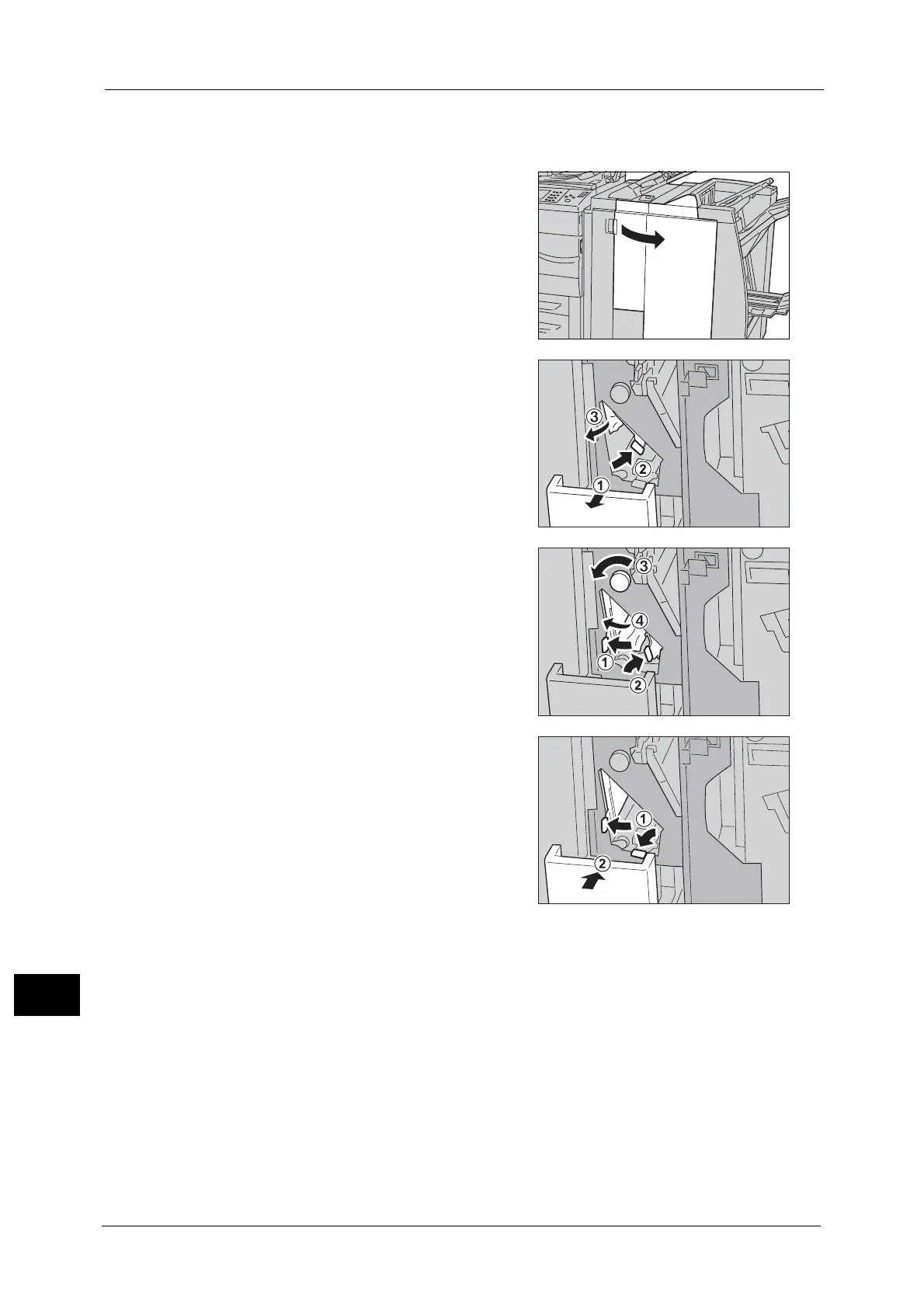

2 Pull out the tri-fold output tray 2d, swing the
lever 2e, and remove the jammed paper.
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
3 If you cannot remove the paper in step 2,
return the lever 2e to the original position.
Swing the lever 2e, turn the knob 2c to the left,
then remove the jammed paper.
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
4 Swing back the opened lever (2f or 2e), and
push back the tri-fold output tray 2d.
5 Close the finisher right cover.
Note • A message will be displayed and the machine will not operate if the front cover of the finisher is
even slightly open.
To Next Page
