Note • The values displayed in [Side 1] and [Side 2]
vary depending on the machine. The
Alignment Adjustment Type feature adjusts
relative difference between the sides 1 and
2. Thus, if adjustable amount to the desired
direction is not enough in one side, adjust the
other side.
4 Select [Save].
Print Position Adjustment
Adjust the position of the image in the paper feed direction and in the vertical direction in
relation to the paper feed direction in 0.1 mm increments for both sides 1 and 2.
Adjust the position in the paper feed direction with [X Print Position], and adjust the position
in the vertical direction in relation to the paper feed direction with [Y Print Position].
1 Check the sample printout, measuring the amount of print position misalignment.

X Print Position
Specify a positive value to move the position of the image in the opposite direction of the
paper feed direction, and a negative value to move the position of the image in the paper
feed direction.

Y Print Position
Specify a positive value to move the position of the image toward the rear of the
machine, and a negative value to move the position of the image toward the front of the
machine.
2 Select [X Print Position] or [Y Print Position],
and then select the [Change Settings].

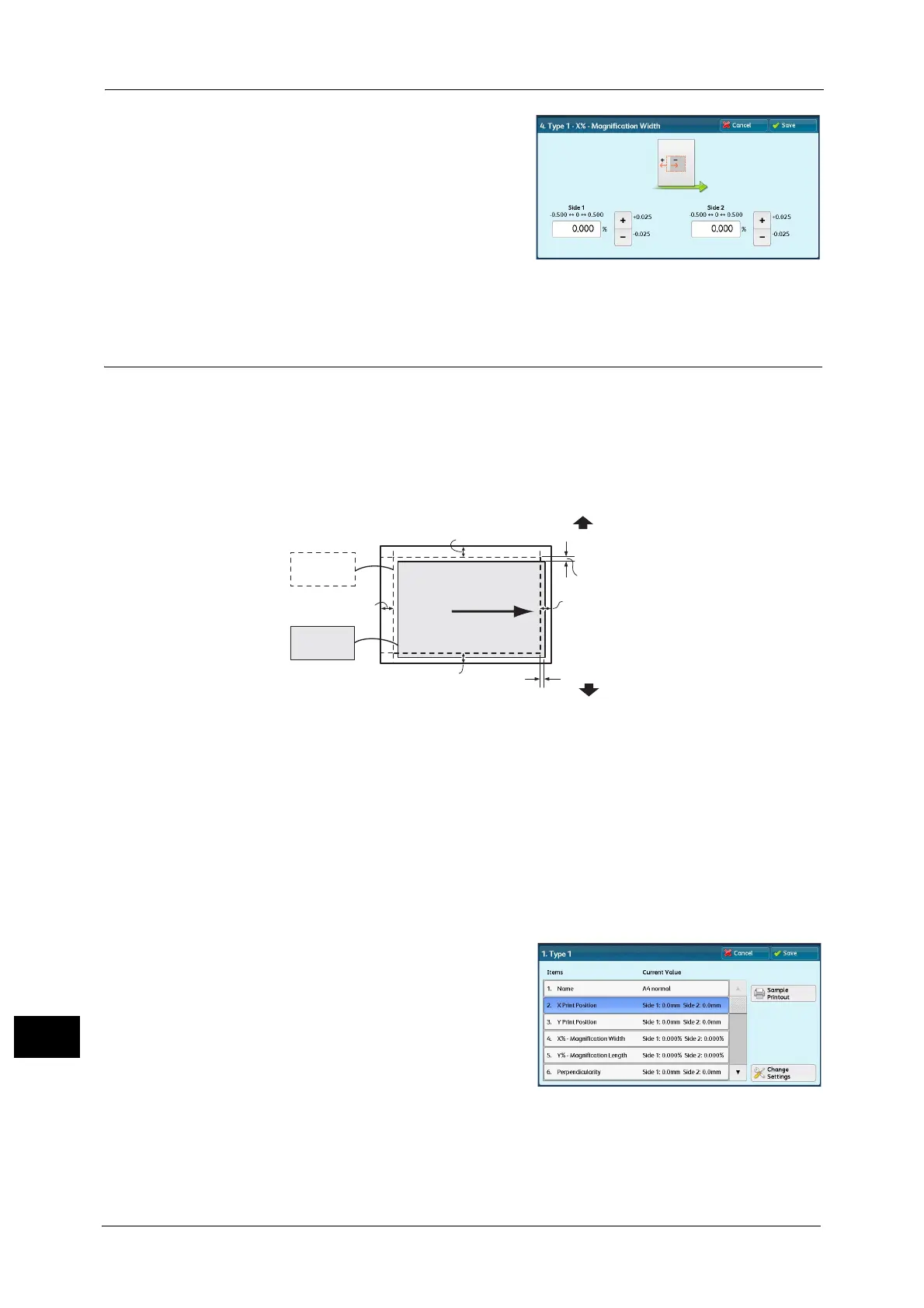

Paper feed direction
Back of Machine
Image after
adjustment
Front of Machine
Image before
adjustment
Difference Y
Difference X
15 mm
15 mm
15 mm
15 mm
