Replacing Consumables
81
Maintenance
3

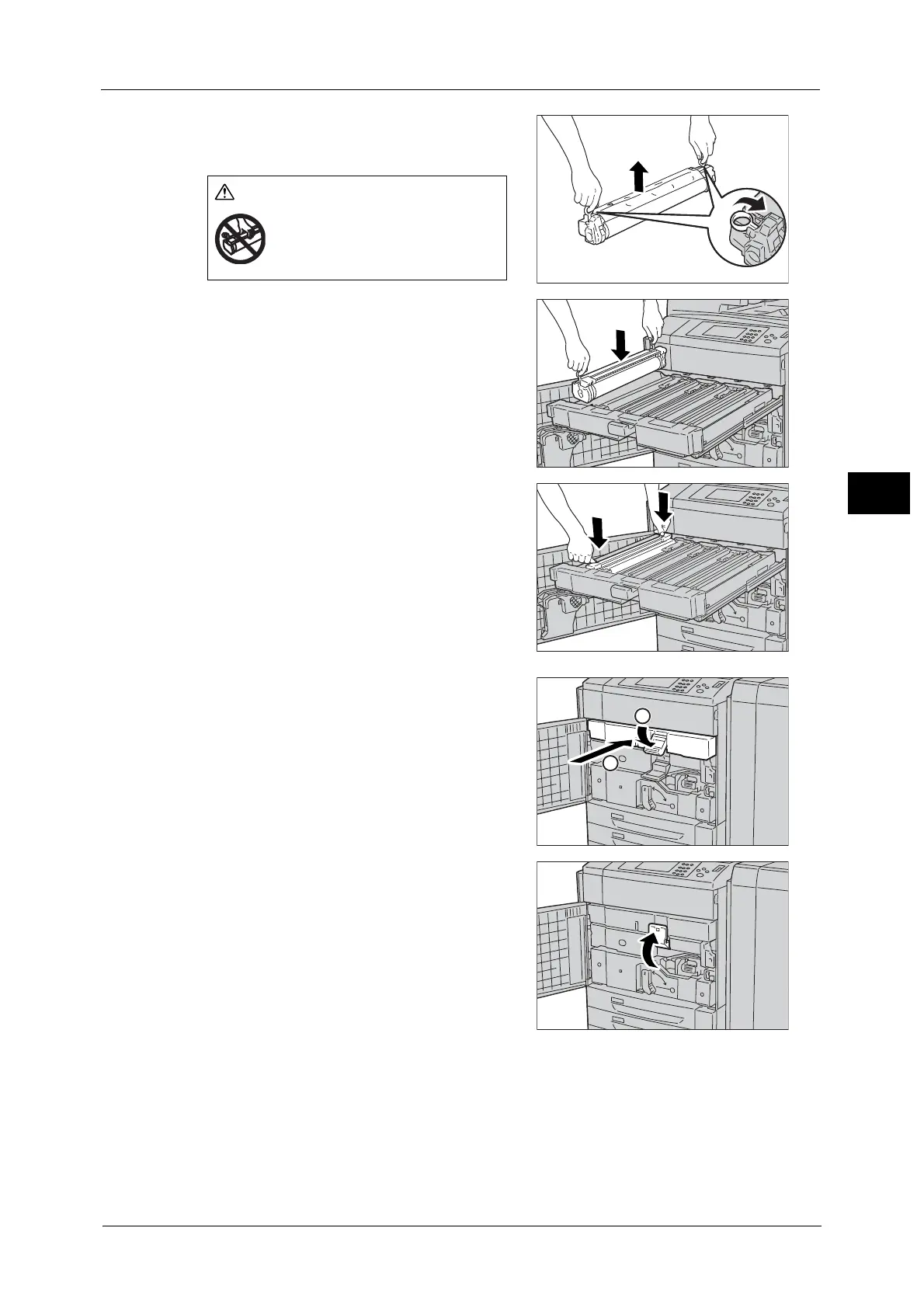

9 Grip rings provided at the both ends of the
drum cartridge to uplift.
10 Place the drum cartridge along with the guide.
11 Press the both ends of the drum cartridge to
place it in a horizontal position.
12 Insert the unit completely (1), and return the
handle to its original position (2).
13 Return the handle [R1-R4] to its original
position.
14 Close the machine front door.
Note • A message will be displayed and the machine will not operate if the machine front door is even
slightly open.
Be sure to insert your fingers
into the rings when lifting the
drum cartridge up.
