Working with the notebook
14 440 N00072

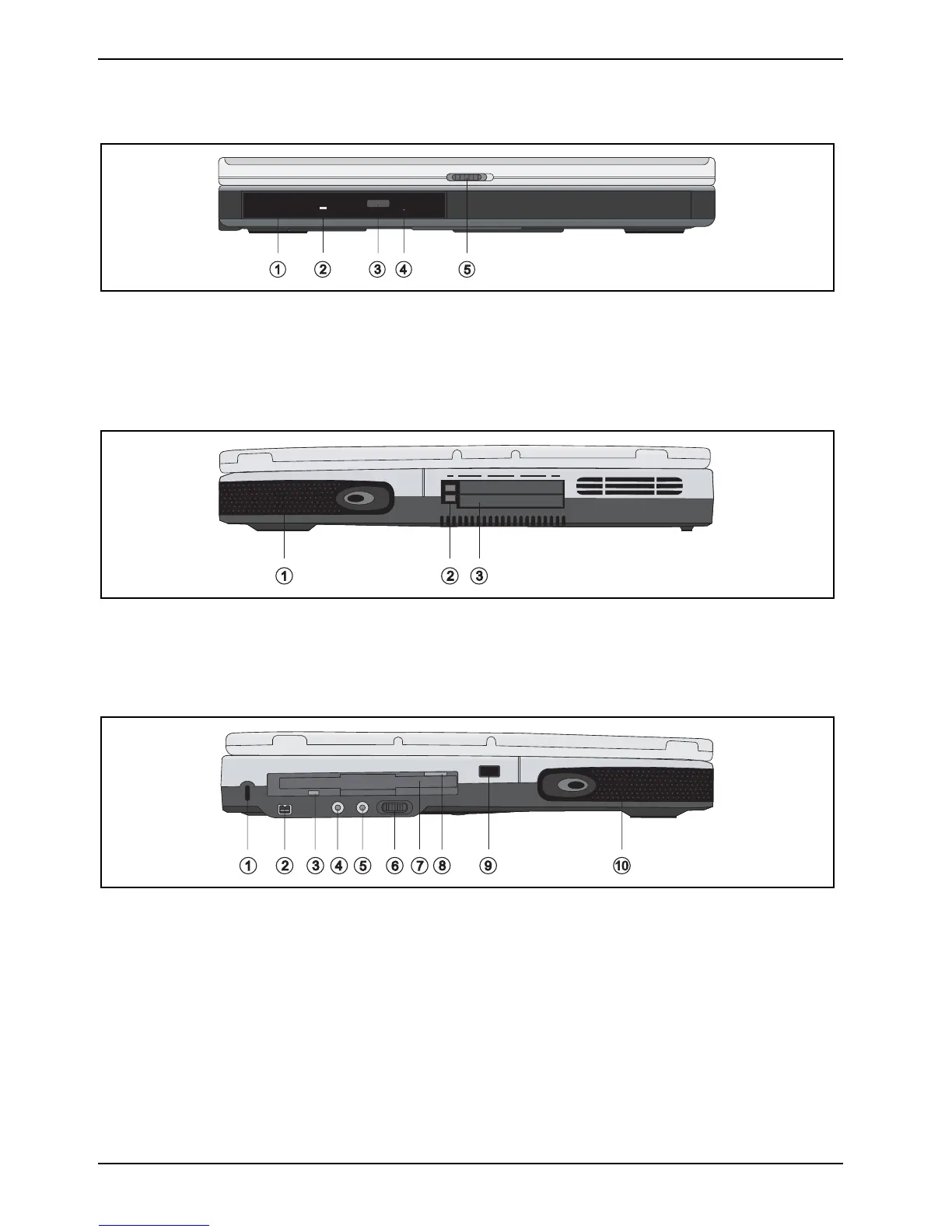

Front
1 = Optical drive
2 = Power-on indicator of optical drive
3 = Insert/eject button of optical drive
4 = Opening for manual ejection
5 = Release for opening the notebook
Right side panel
1 = Right Speaker
2 = PC card eject buttons
3 = PC card slots
Left side panel
1 = Kensington Lock
2 = IEEE 1394 Firewire port
3 = Floppy disk drive indicator
4 = Audio output SPDIF (Line out)
5 = Microphone (Line in)
6 = Volume control
7 = Floppy Disk Drive
8 = Eject button for inserted floppy disks
9 = Infra-red interface (only for AMILO D 6800
/ 7800 / 8800 models)
10 = Left Speaker
