Preparing for use
16 A26361-K675-Z120-1-7619, edition 3
Ports on the PC

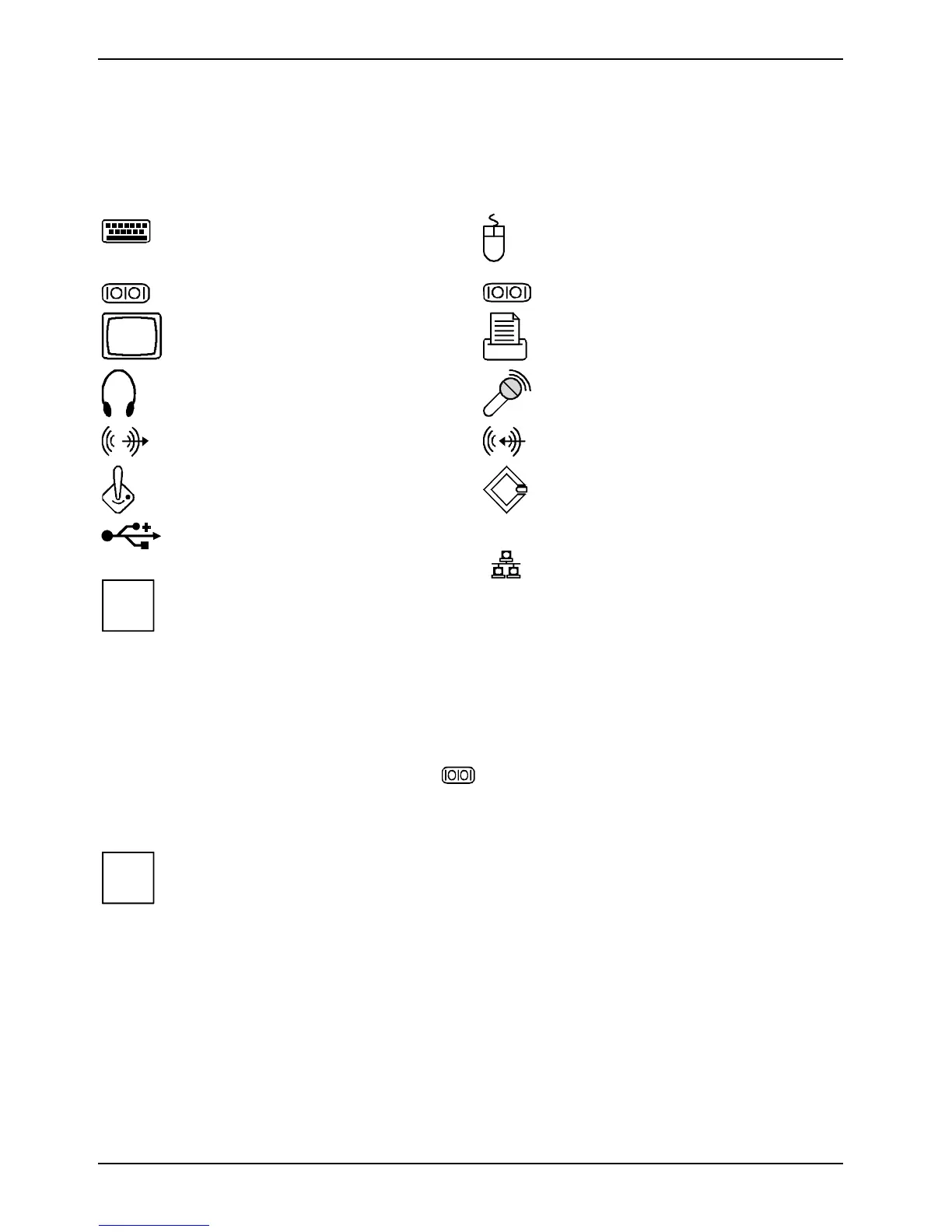

The ports for external devices are on the rear and on the front of the PC. The ports available on your
PC depend on the configuration level you have selected. The standard ports are marked with the
symbols shown below (or similar).
Keyboard port, purple
PS/2 mouse port, green
1
Serial port 1, teal or turquoise
2
Serial port 2, teal or turquoise
Monitor port, blue
Parallel port/Printer, burgundy
Headphones port, light green
Microphone jack (mono), pink
Audio output (Line out), light green
Audio input (Line in), light blue
Game port, gold
SCSI connection
USB - Universal Serial Bus, black
LAN
LAN port
i
Some of the devices that you connect require special drivers (see the operating system
and device documentation).
Connecting external devices to the serial port
External devices can be connected to the serial port (e.g. a modem).
► Connect the data cable to the external device.
► Connect the data cable to the serial port
.
For an exact description of how to connect external devices to the serial port, please refer to the
device documentation.
i
Settings of the serial port
If you need to change the settings of the serial port (e.g. address, interrupt), you can do
so in the BIOS Setup. The settings for the port are described in the technical manual for
the mainboard or in the "BIOS Setup" manual.
Device drivers
The devices connected to the serial port require drivers. Your operating system already
includes many drivers. Nevertheless, if the driver you need is not on the hard disk, please
install it from the data carrier supplied with the device or with the application programme.
