System expansions
A26361-K675-Z120-1-7619, edition 3 39
Low-Profile boards
For units with a particularly low overall height, there are so-called low-profile boards with a slot cover
with a lower overall height to match the low-profile units. To also install these low-profile boards in
normal board slots, you must mount a corresponding slot adapter beforehand The slot adapter is
located on the slot cover of the upper slot.
► Unscrew the screw that connects the slot adapter to the slot cover.

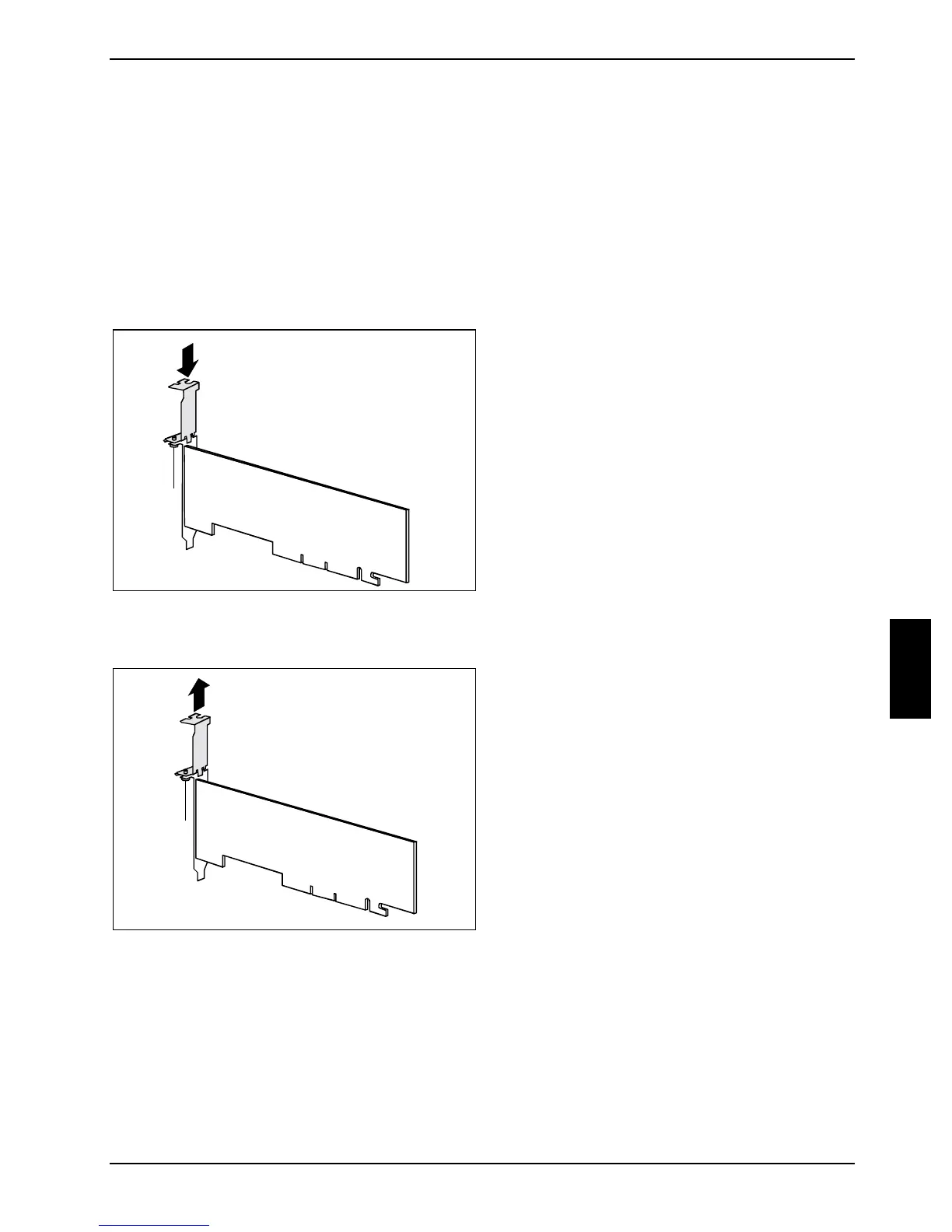

Mounting slot adapter
2
1
► Fit the slot adapter in the direction of the
arrow (1) on the slot cover of the low-profile
board and screw it on (2).
Now you can install the low-profile board in a
suitable slot like a normal board (see the
"Installing a board" chapter).
Removing slot adapter
2
1
► Unscrew the screw (1) and remove the slot
adapter in the direction of the arrow (2).
