Installing and removing the graphiks card
Your device has a special slot for graphics cards (e.g. PCI Express Low Profile).
Installing the graphics card
► Open the casing (see "Opening the casing" chapter).
► Remove the board bracket as described in "Removing board bracket" section.

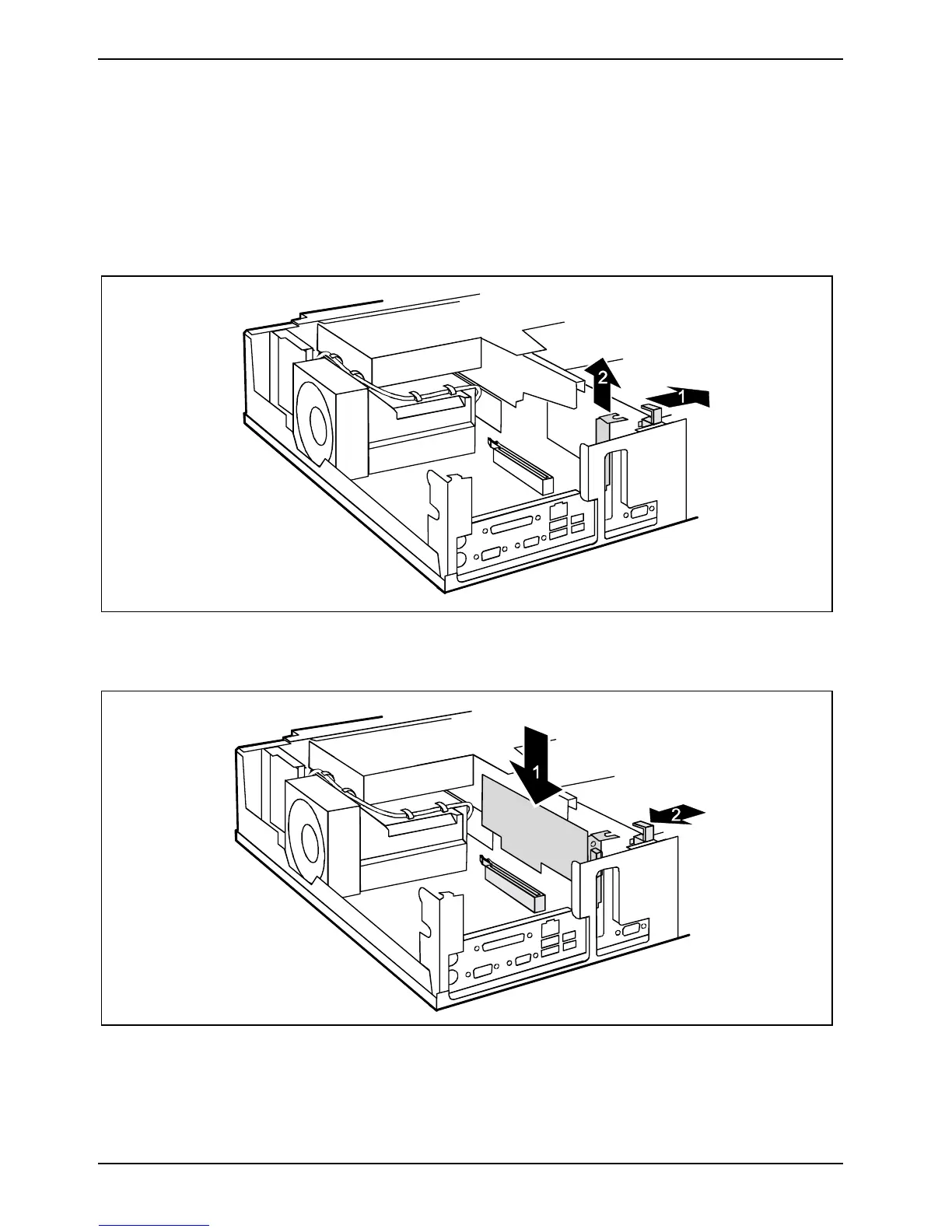

► Press sideways against the retaining bracket and fold it up in the direction of the arrow (1).
► Pull the slot cover out of the slot in the direction of the arrow (2).
► Push the board up to its slot (1) in the direction of the arrow as far as the stop.
