System expansions
46 A26361-K675-Z120-1-7619, edition 3
Folding up and down the drive cage
► Open the casing (see "Opening the casing").
i
Please also observe the sticker on the drive cage.

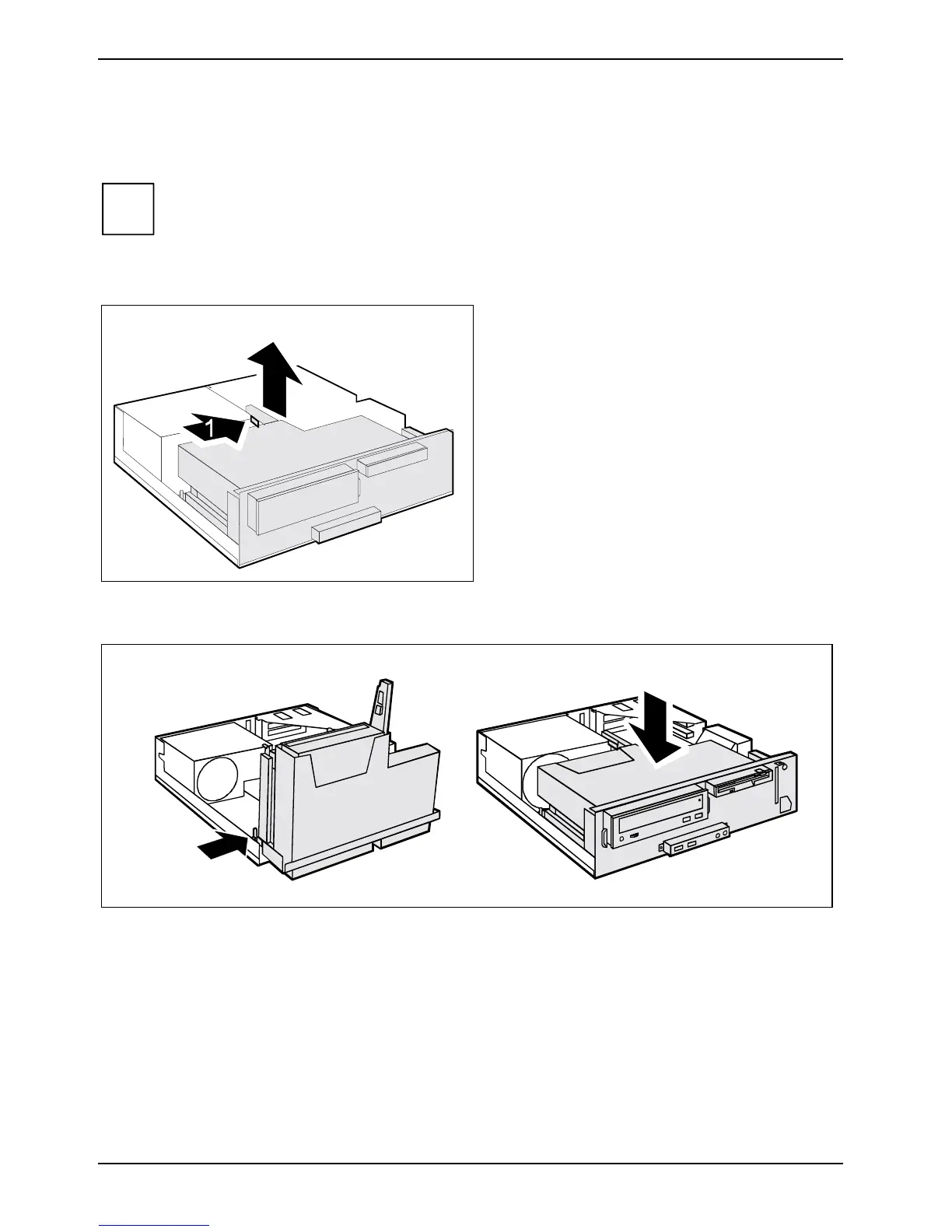

Folding up the drive cage
2
► Press on the drive cage lever (1).
► Fold the drive cage completely upward in
the direction of the arrow (2).
Folding down the drive cage
4
3
► Press on the locking lug (3) of the drive cage and then fold the drive cage with light pressure in
the direction of the arrow (4) until the lever engages. Make sure that no cables are pinched in
the process.
