System expansions

A26361-K675-Z120-1-7619, edition 3 47

Replacing the floppy disk drive

► Open the casing (see "Opening the casing" chapter).

► Fold up the drive cage (see "Folding up and down the drive cage" chapter).

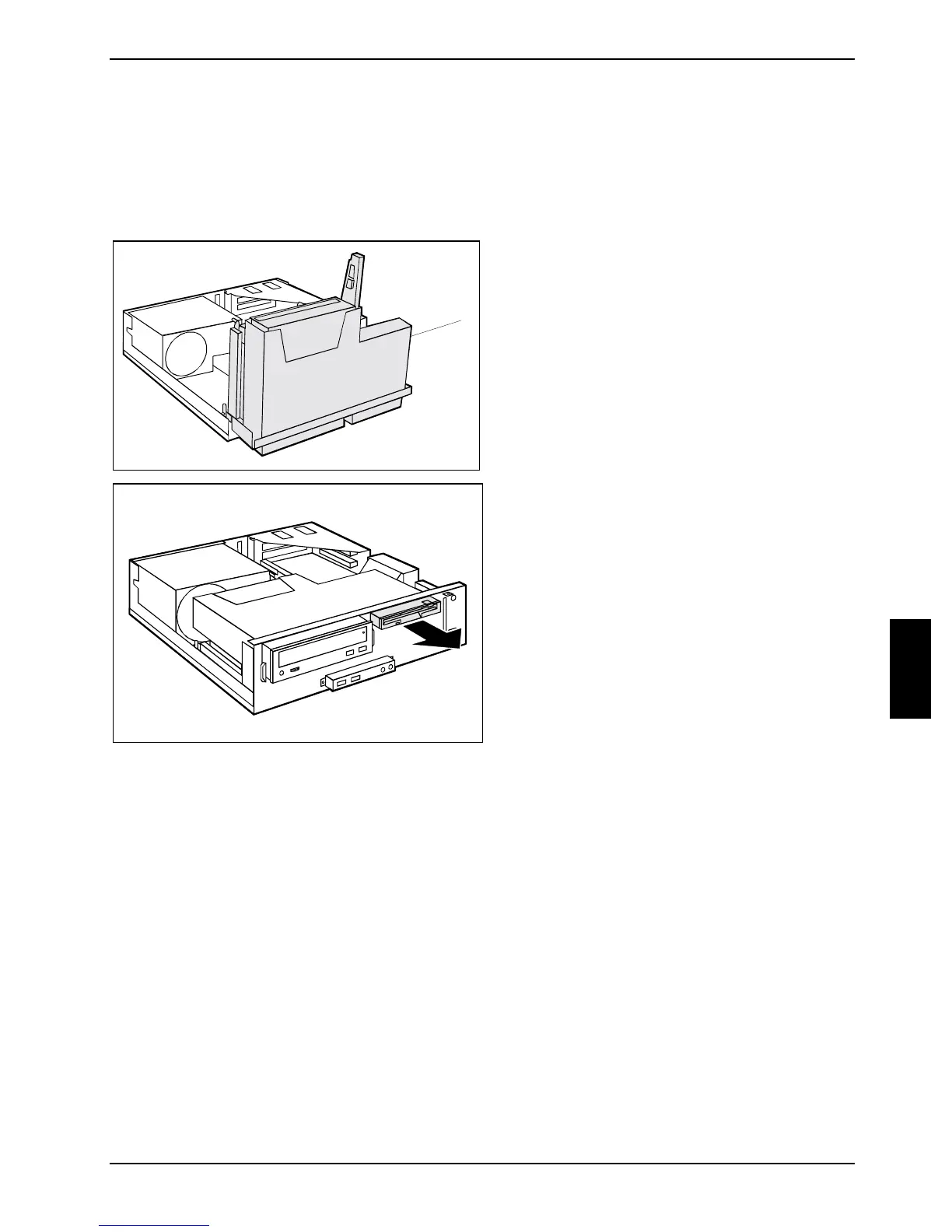

Removing the floppy disk drive

► Remove the screw (1).

► Disconnect the cables from the floppy

disk drive.

► Fold down the drive cage (see chapter

"Folding up and down the drive cage").

► Pull the drive out of the casing.
