Replacing the processor
► Replace the processor (see the technical manual for the mainboard).
Installing ventilation duct
2

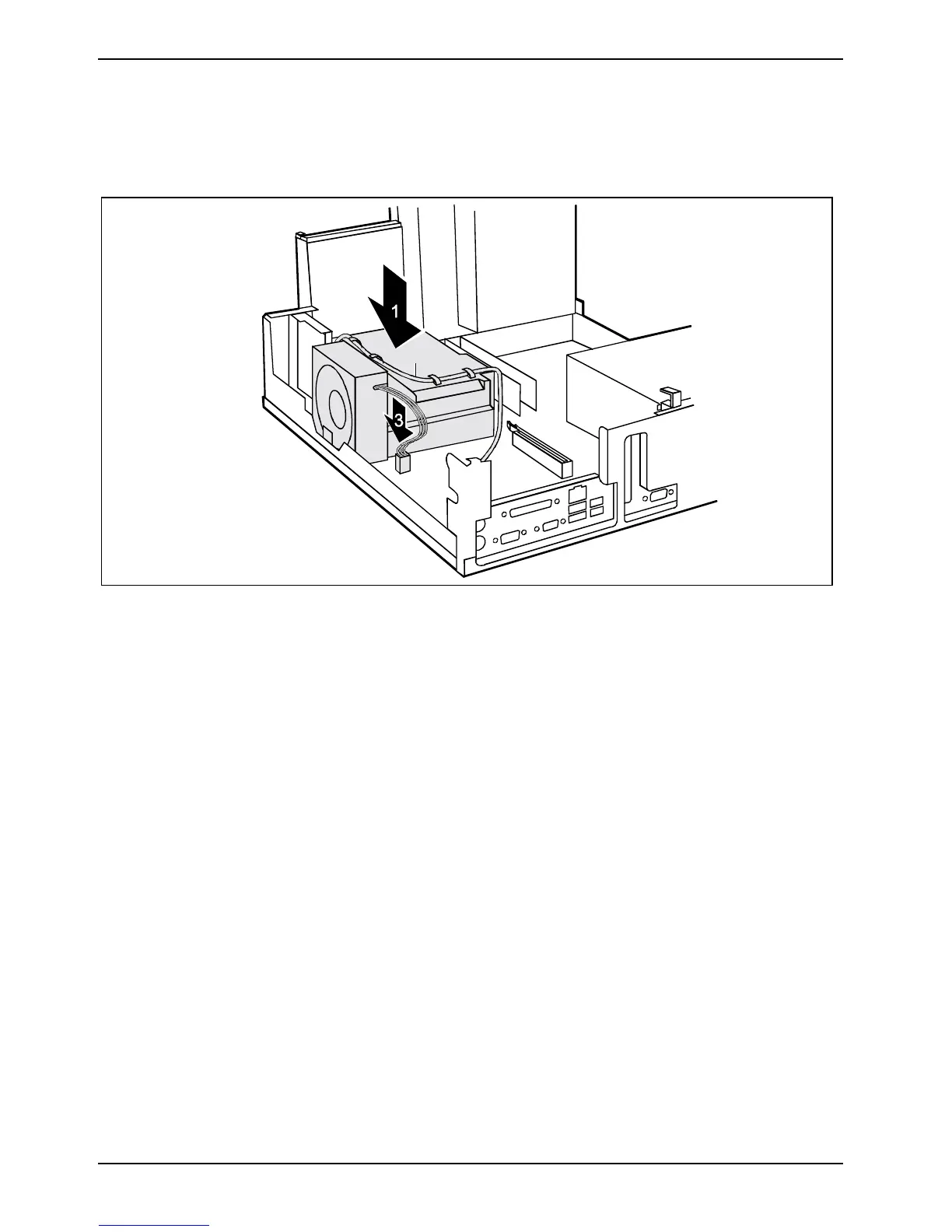

► Reinstall the ventilation duct in the direction of the arrow (1). Make sure that the locking lug on
the fan engages properly.
► If it is present, route the cables (2) through the hooks on the ventilation duct.
► Connect the fan plug to the mainboard (3).
► Fold down the drive cage (see chapter "Folding up and down the drive cage").
► Close the casing (see "Closing the casing" chapter).
