Fujitsu AO*G24LAT3 User Manual

- (03 - 42) -

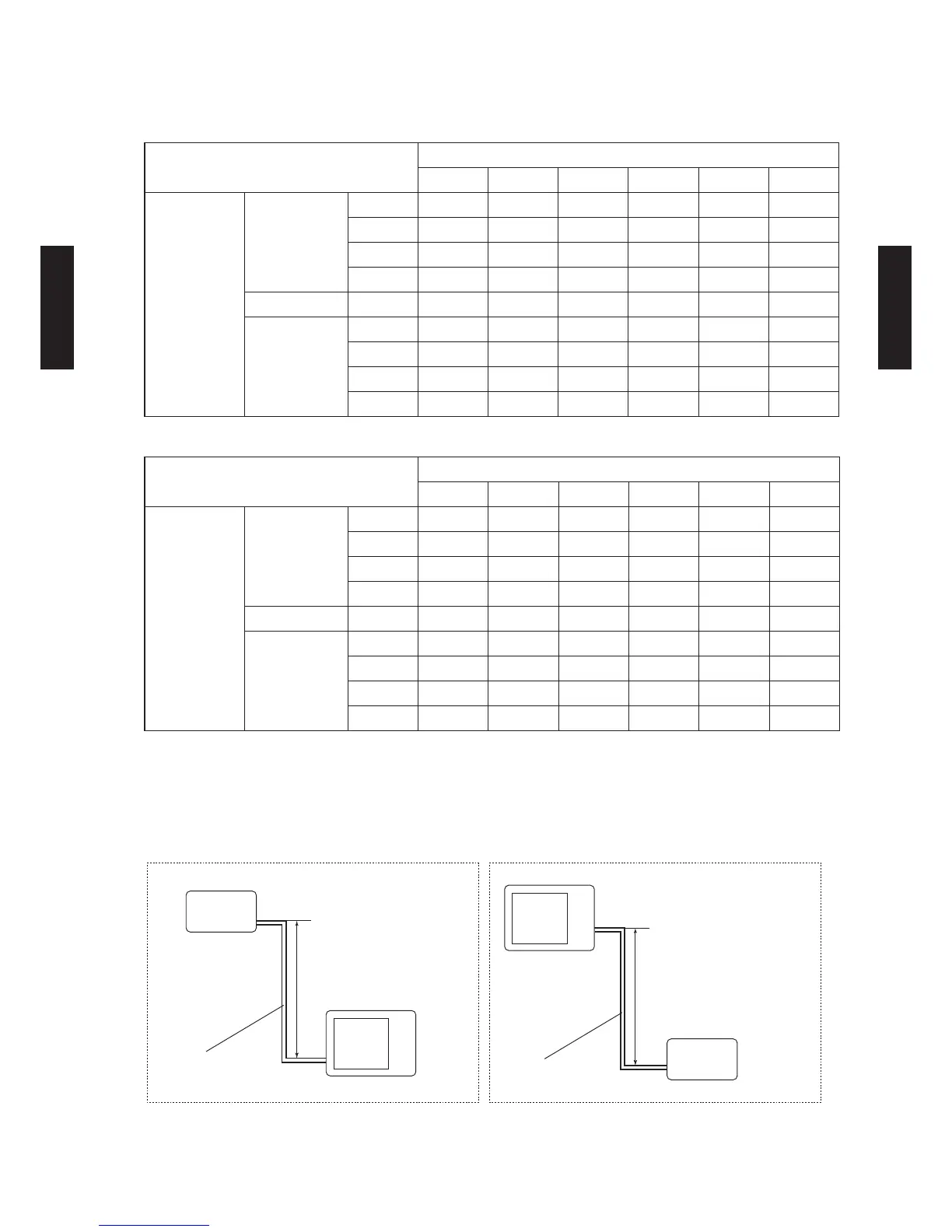

OUTDOOR UNIT AO

G18-24L3
OUTDOOR UNIT AO

G18-24L3
INDOOR UNIT : 14000Btu (AO
 
G18L3, AO

G24L3)
H
H
Height difference H

1 Indoor unit is higher than outdoor unit.

2 Indoor unit is lower than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
5 7. 5 10 15 20 25
Height
difference H
(m)

1
Indoor unit is
higher than
outdoor unit.
15 - - - 0.967 0.943 0.917
10 - - 0.990 0.967 0.943 0.917
7.5 - 1.000 0.990 0.967 0.943 0.917
5 1.000 1.000 0.990 0.967 0.943 0.917
0 1.000 1.000 0.990 0.967 0.943 0.917

2
Indoor unit
is lower than
outdoor unit
-5 0.995 0.995 0.985 0.962 0.938 0.912
-7. 5 - 0.993 0.983 0.960 0.936 0.911
-10 - - 0.980 0.957 0.934 0.908
-15 - - - 0.952 0.929 0.903
COOLING
Pipe length (m)
5 7. 5 10 15 20 25
Height
difference H
(m)

1
Indoor unit is
higher than
outdoor unit.
15 - - - 0.969 0.962 0.953
10 - - 0.982 0.977 0.970 0.961
7.5 - 0.988 0.986 0.981 0.973 0.965
5 0.992 0.992 0.990 0.985 0.977 0.968
0 1.000 1.000 0.998 0.993 0.985 0.976

2
Indoor unit
is lower than
outdoor unit
-5 1.000 1.000 0.998 0.993 0.985 0.976
-7. 5 - 1.000 0.998 0.993 0.985 0.976
-10 - - 0.998 0.993 0.985 0.976
-15 - - - 0.993 0.985 0.976
