Fujitsu AO*G24LAT3 User Manual

- (01-34) -
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
INSTALLATION


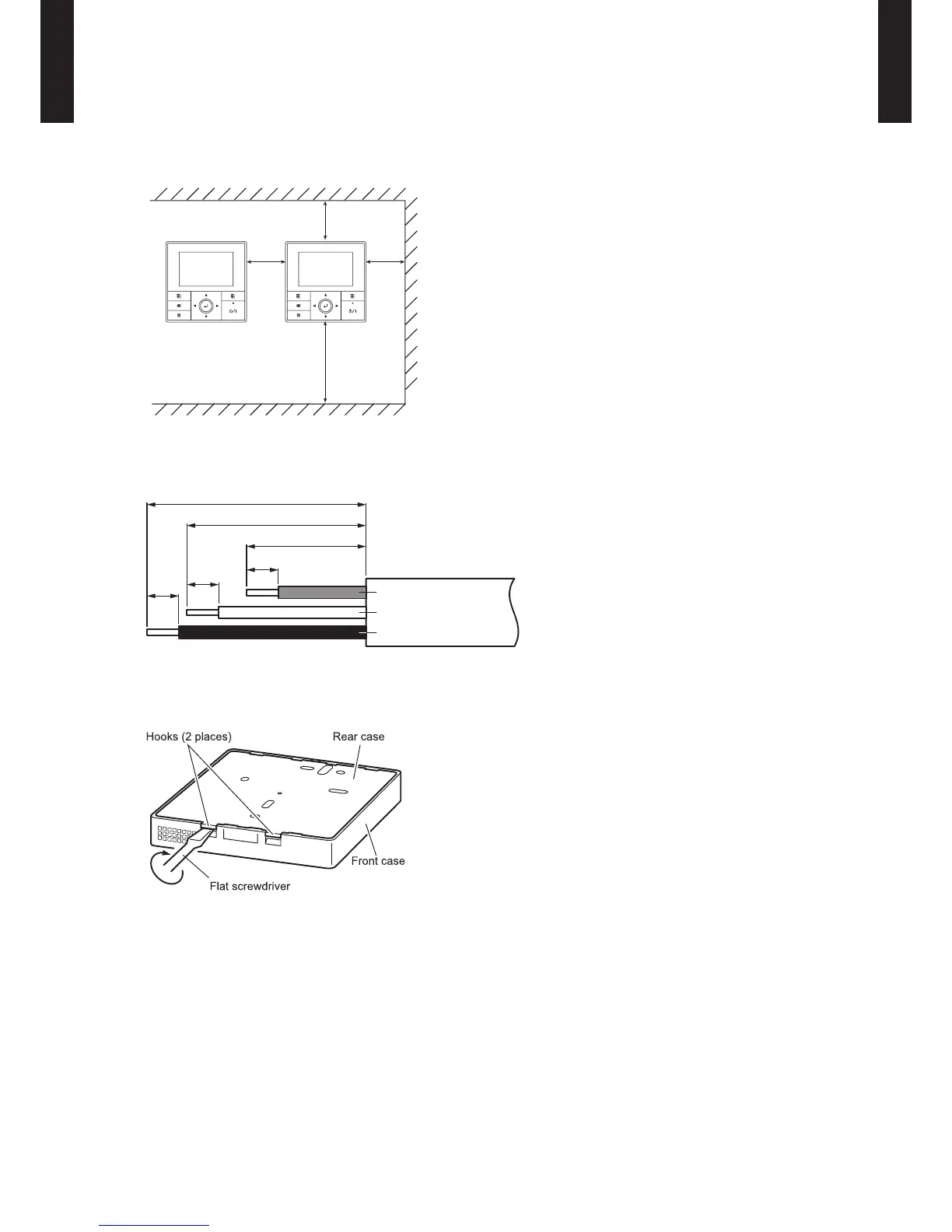

1) Installation space.
220 or
more*
Unit : mm
30
or more
30
or more
30
or more
* Please secure enough space
where a at screwdriver to take off
a case can be inserted.
2) Processing of the remote controller cable.
8
8
8
30
45
55
Unit : mm
1. 12V (Red)
2. Signal (White)
3. COM (Black)
3) Insert the at-blade screwdriver and remove the front case and rear case by twisting it slightly.

Fujitsu AO*G24LAT3 Specifications

General

Brand	Fujitsu
Model	AO*G24LAT3
Category	Air Conditioner
Language	English
