Fujitsu DL3100 - ETHERNET INTERFACE

FUJITSU DL3100
User’s Manual D-9
ETHERNET
INTERFACE

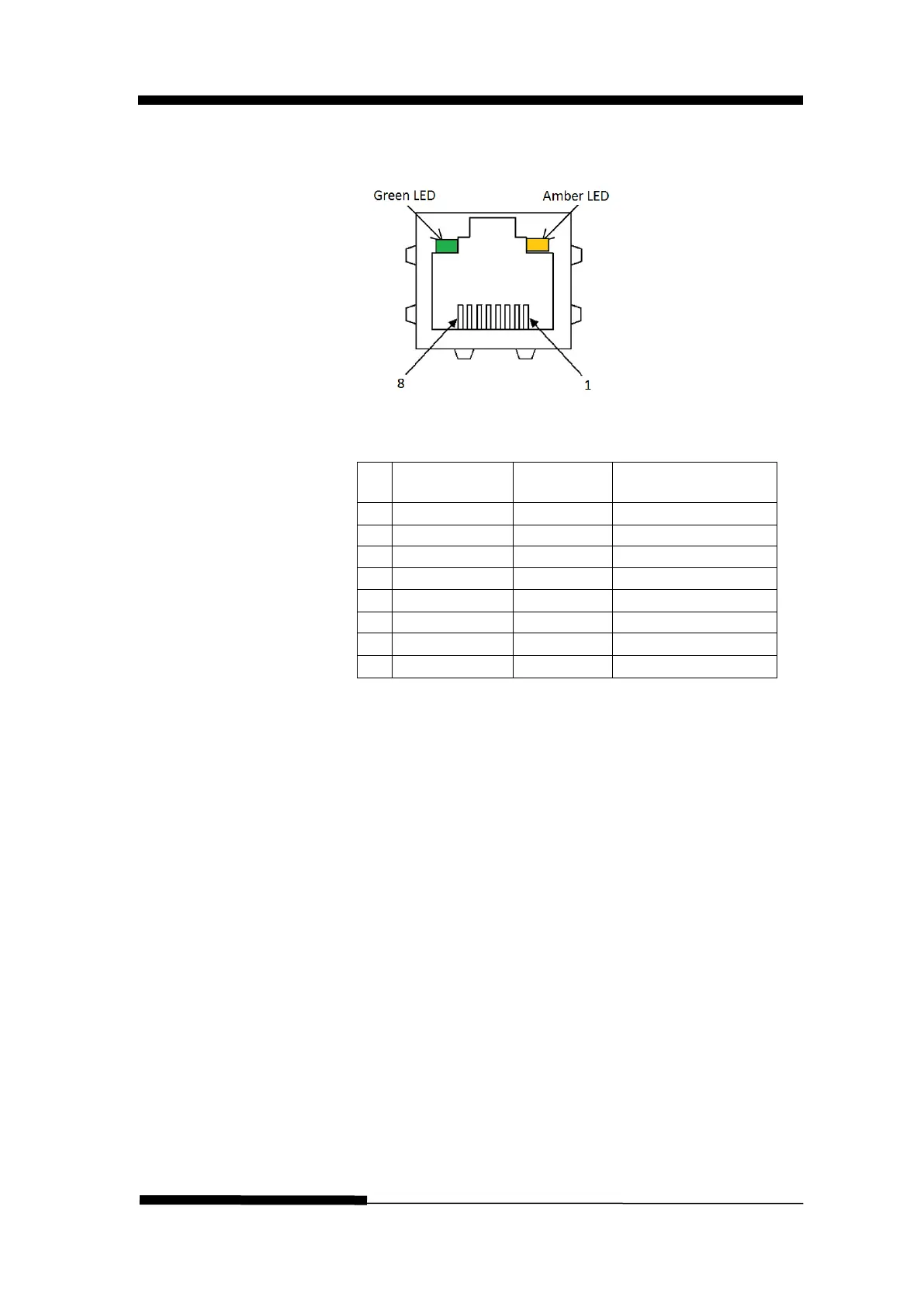

Connector pin alignment
Green LED: LINK/ACK
Amber LED: 100Mbps
No. Signal line name DIR Function
1
TXO+
NIC-HUB
Transmit data +
2
TXO-
NIC-HUB
Transmit data -
3
RXI+
HUB-NIC
Receive data +
4 − − −
5
−
−
−
6 RXI- HUB-NIC Receive data -
7 − − −
8 − − −
Note :
Green LED: Led is on, indicates the link is connected.
Amber LED: Led is flashing, indicates the data is
switching.
