Fujitsu ErgoPro e Series User Manual

ErgoPro e-, x- and s- Series PC Specialist's Handbook
Page 14 First Edition, Release 4 - June 1998
System board AC41655/58/59/81/82/87/89
Block diagram
CPU
Pentium
Cache
connector
System
controller
82C557M
DRAM
buffers
DRAM
Max 128 MB
Data buffer
82C556M
HD [0:63]
HA [3:31]
AD [0:31]
SD [0:15]
MD [0:63]
SA [0:19], LA[17:23]
Clock
generator
33.3 MHz
14.318 MHz
12.0 MHz
66.7 MHz
33.3 MHz
14.318 MHz
24.2 MHz
VGA CONN DB CONN
FEATURE CONN
BACK PLANE
CONN 1
PCI-ISA
bridge
82C558M
Video
DRAM
Max 2 MB
Video
ATI
264 CT
Interface
Ethernet
module
CPU Bus
Memory Bus
PCI Bus
ISA Bus
XD [0:7]
BACK PLANE
CONN 1 & 2
SERIAL
PORT1
SERIAL
PORT2 PORT
PARALLEL FDD HEADP.
CONN
MIC.
CONN CONN
ESS Sound
Logic
MultiD
SM C 37C665
Interface
RiserCard
ISA signals
Data
buffers
Config
register
Power
Manag.
controller
KB MOUSE MOUSE
RTC
KBC
BDS
Flash
Ethernet
Boot ROM
RiserCard
PCI signals
Prim. IDE CONN
Sec. IDE CONN

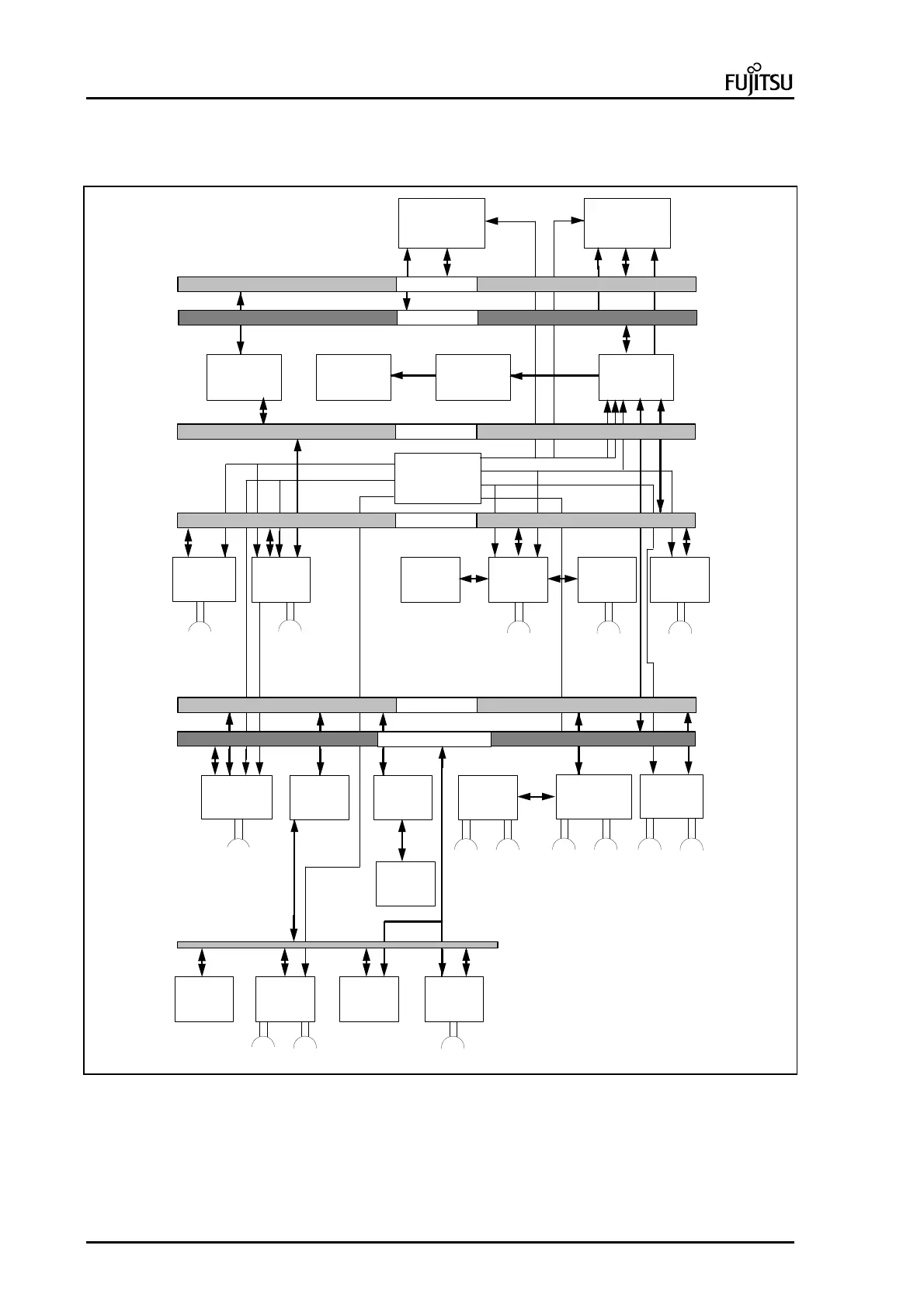

Picture 18 : Block diagram AC41655/58/59/81/82/87/89
