PC Specialist's Handbook ErgoPro e-, x- and s- Series
First Edition, Release 4 - June 1998 Page 71

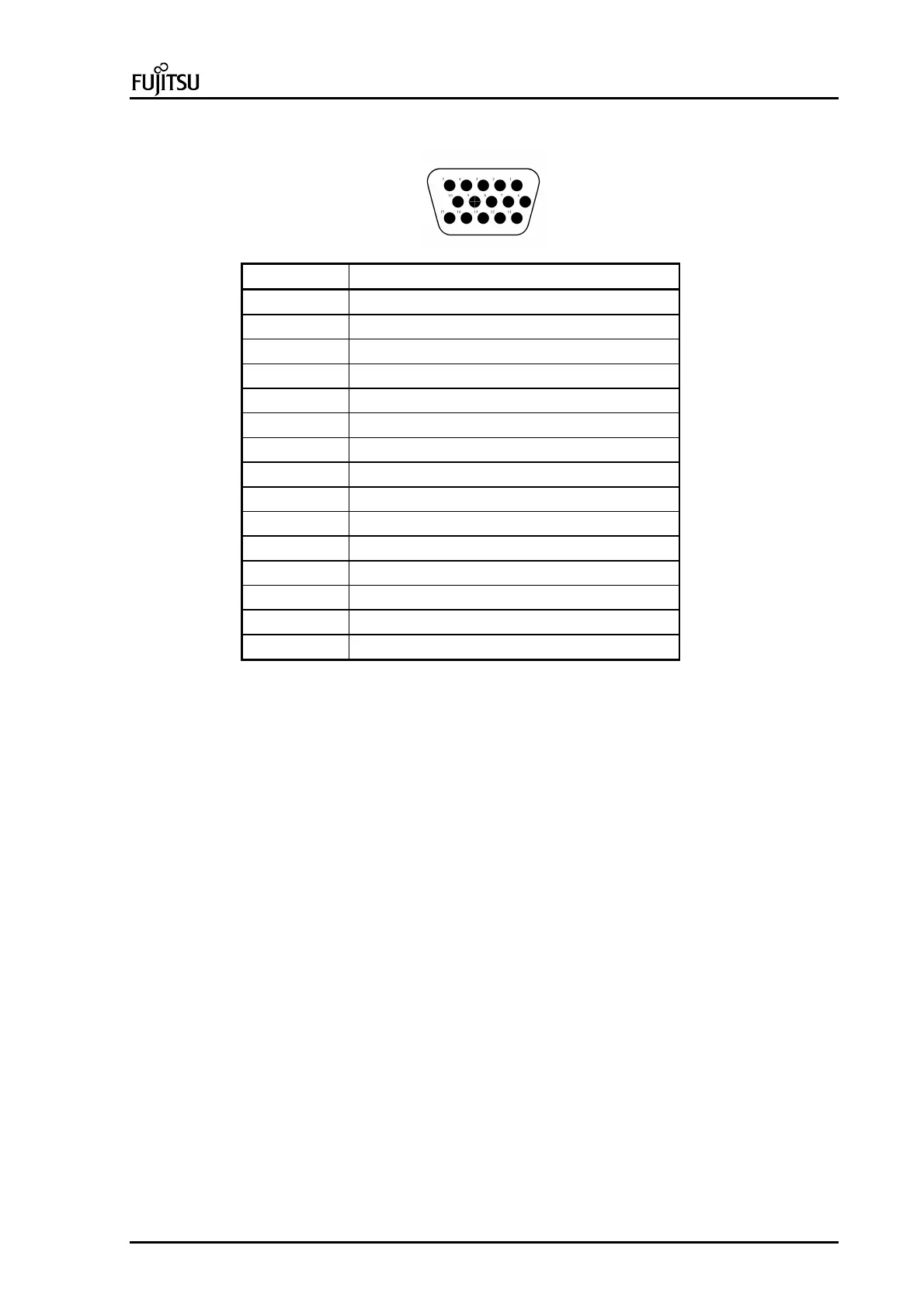

VGA-type connector
PIN Signal
1
(R) Analog Red Colour signal
1
2
(G) Analog Green Colour signal
2
3
(B) Analog Blue Colour signal
1
4
Not connected
5
Reserved (Ground)
6
Return signal for Red colour(GND)
1
7
Return signal for Green colour(GND)
2
8
Return signal for Blue colour(GND)
1
9
+5V for the DDC circuitry of the monitor
10
Digital Ground
11
Not connected
12
DDC ID1
13
Horizontal deflection control signal
3
14
Vertical deflection control signal
3
15
DDC ID2
1
Used only with colour displays
2
Used with colour and monochrome displays
3
HSYNC/VSYNC: TTL
Analog signals R, G, B: 0V to 0.7V terminated to 75 ohm
