1. ETERNUS AB/HB Installation
Installation Area
Site Planning Guide
35
When 4U controller shelves or DE460C drive shelves (60-drive) are installed in a rack or being main-
tained, temporary space is required to use the lifter around the rack.

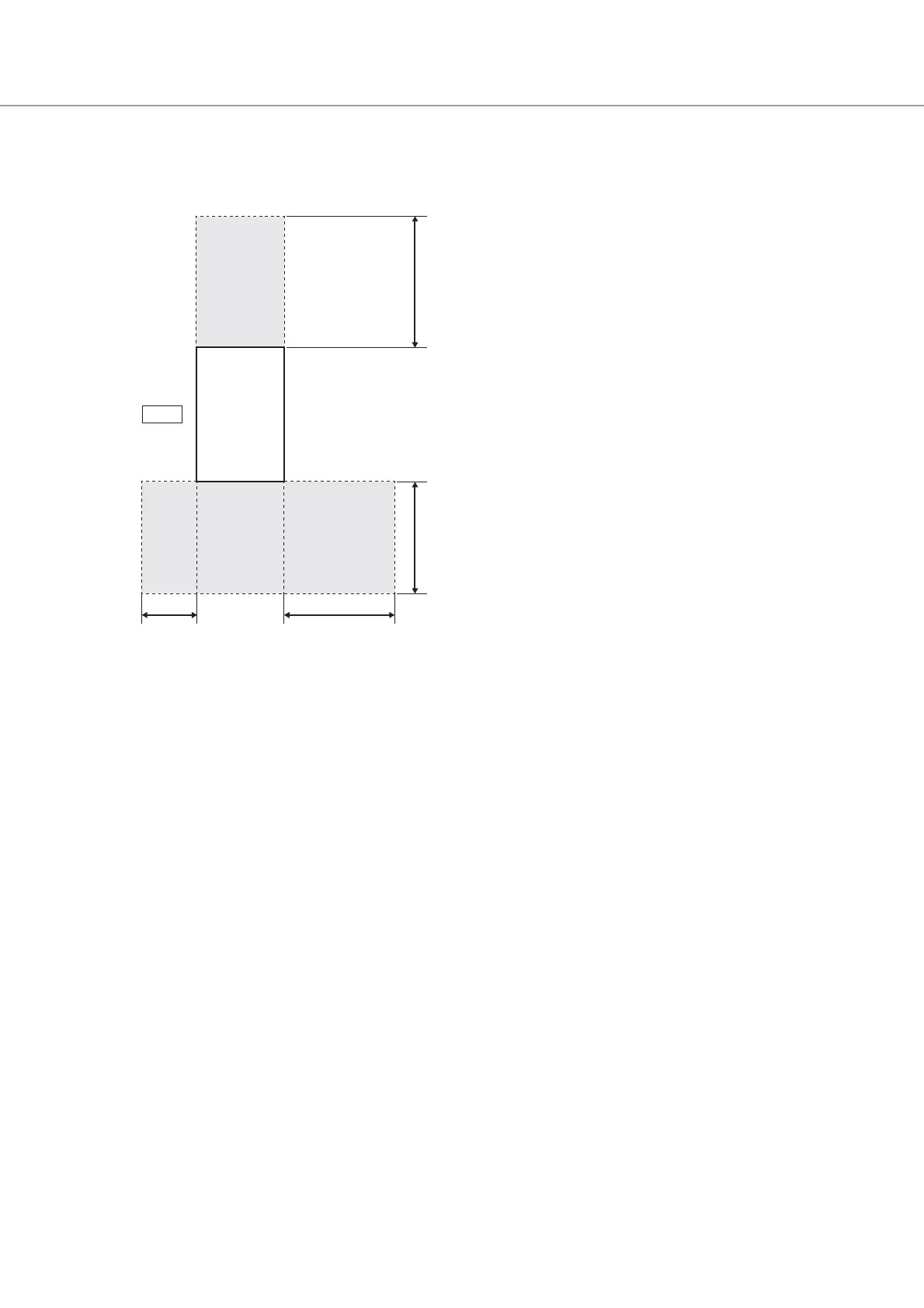

Figure 15 Installation Area and Service Area (When the Lifter Is Used)
*1: If a service area in front of the rack can be secured, secure a size 1,800mm or more.
■ Precautions for Installing an ETERNUS HB2300/HB5200 Controller Shelf or a
DE460C Drive Shelf in a Rack
• A lifter must be used to ensure safety during the installation of the drive shelf in the rack. Secure
a space required to use the lifter.
• When a drive is added or replaced, the front left and right of the rack must be secured as service
areas to pull out the drawer.
• The drive shelf weighs a maximum of 115 kg. Be sure to maintain the load bearing capacity of the
location where the drive shelves are installed.
850 mm or more
1,020 mm or more (*1)
500 mm or more 1,000 mm or more
Rear
service area
Front
service area
19-inch rackTo p
