■ Power Distribution Unit (AC24A/200V, 2U, Six Outlets)
There are six outlets and two inlets.
Estimate the maximum current consumption to supply power to all the connected devices using
one of the modules of the power distribution unit.

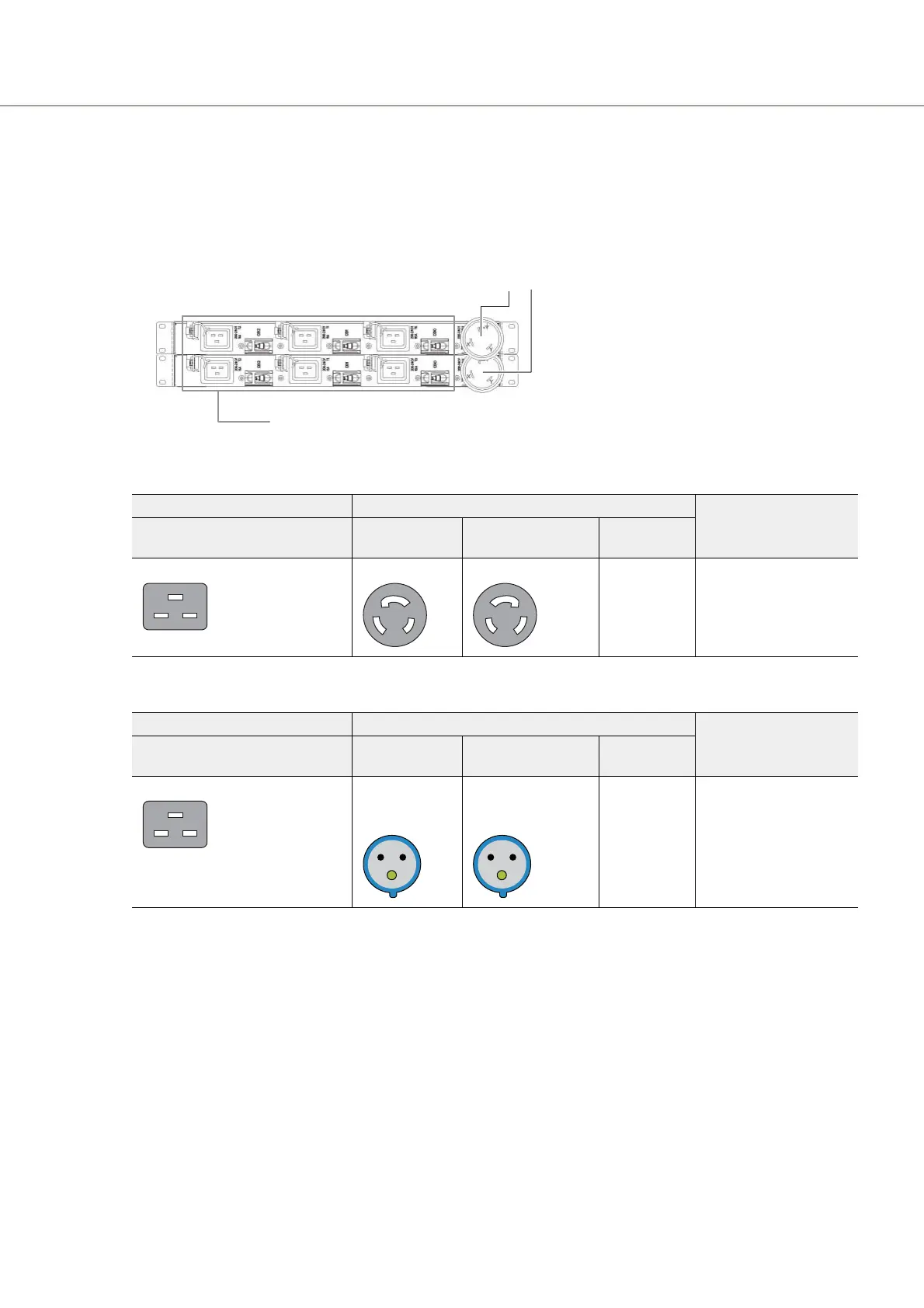

Figure 19 Power Distribution Unit (AC24A/200V, 2U, Six Outlets)
Table 29 Specifications for Power Distribution Units (AC24A/200-240V, 2U, Six Outlets)
Table 30 Specifications for Power Distribution Units (AC24A/200-240V, 2U, Six Outlets) (for Korea)
Outlet Inlet
Voltage rating/
current rating
Socket type
(Socket)
Plug type
Socket type
(Socket)
Power cord
length
IEC60320 C19 NEMA L6-30P NEMA L6-30R 4.4m Rating: 200-240V 24A
Outlet Inlet
Voltage rating/
current rating
Socket type
(Socket)
Plug type
Socket type
(Socket)
Power cord
length
IEC60320 C19 IEC Industrial
Plug IP44 32A
2P+PE
IEC Industrial
Socket IP44 32A
2P+PE
4.4m Rating: 200-240V 24A
