Component Names and LED Names
This section describes the operation panel, the drives, the I/O modules, and the power supply units of the drive
enclosure.
■
Operation Panel
An operation panel has a DE-ID display and LEDs.
● Drive Enclosure

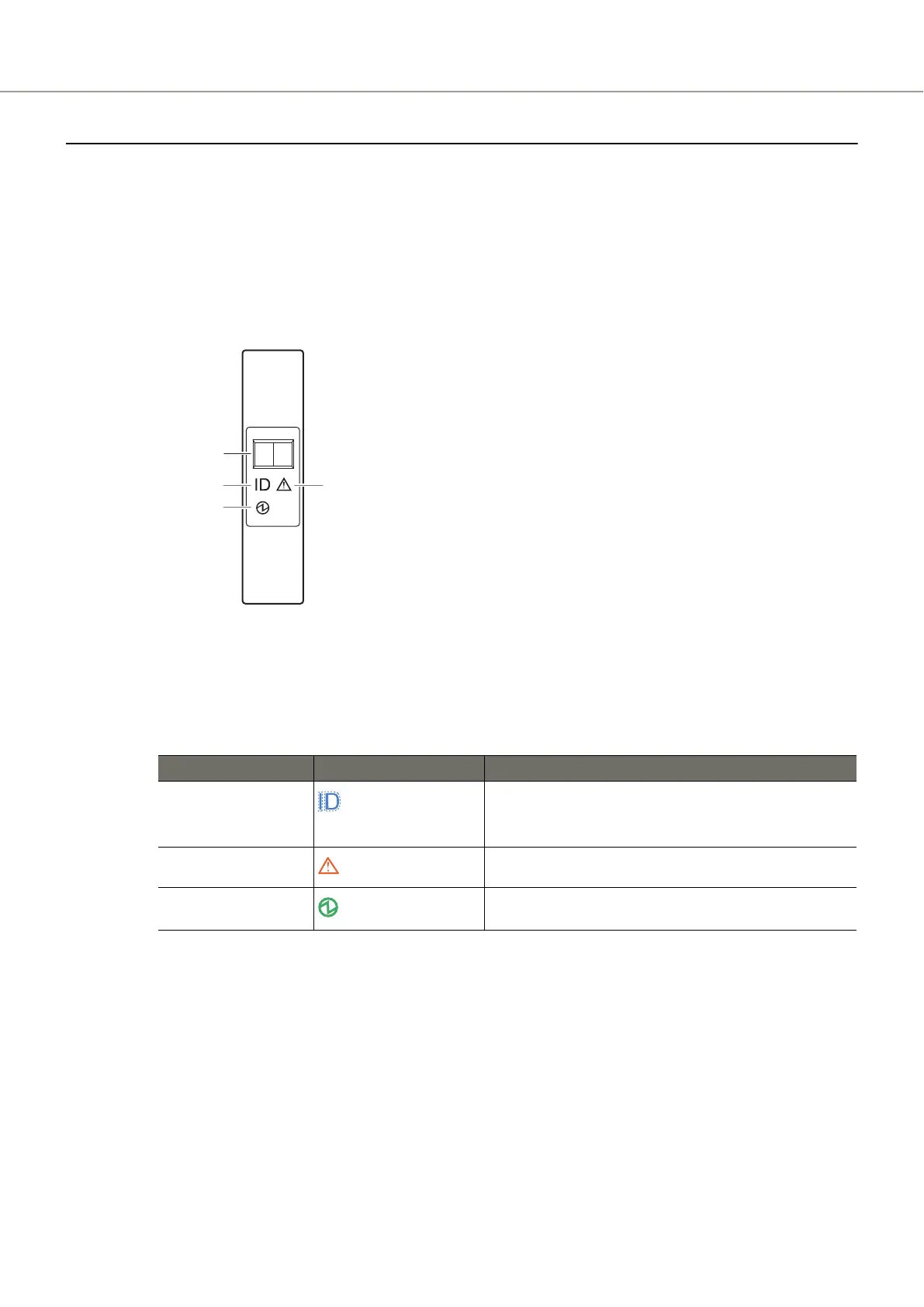

Figure 25 Operation Panel (Drive Enclosure)
1
POWER LED
IDENTIFY LED
FAULT LED
1 DE-ID
The DE-ID (drive enclosure number) of the drive enclosure is displayed.
The LEDs turn on or blink to indicate the statuses that are listed below.
Table 19 Status and Meaning of Each LED (Operation Panel [Drive Enclosure])
LED name LED status Meaning
IDENTIFY
(blinks blue)
The installation location of the drive enclosure is identified according
to the instruction that is issued from ETERNUS Web GUI or ETERNUS
CLI.
FAULT
(amber)
The drive enclosure is in error status.
POWER
(green)
DC power is supplied to the drive enclosure.
A. Component Names
Drive Enclosure
