Fujitsu ETERNUS AF250 S2 - Controller Host Interfaces

■
Host Interfaces
A host interface is a board that has interface ports to connect a controller to the server.
There are three types of host interfaces: FC 32Gbit/s, FC 16Gbit/s, and iSCSI 10Gbit/s.
● FC
The ports on the host interface are used for connecting a controller to a server with an FC cable. This port uses a
Dual LC connector.

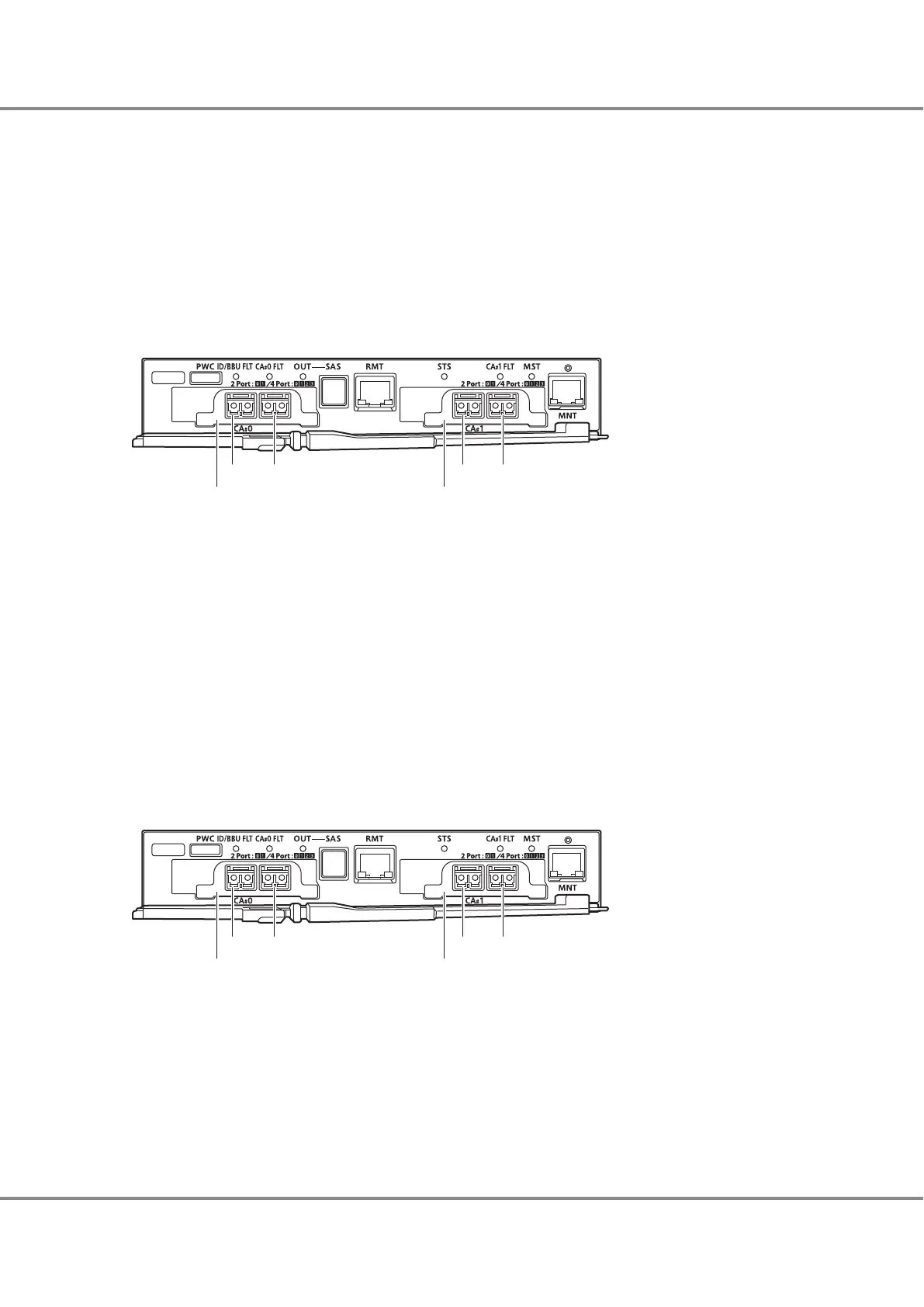

Figure 7 Host Interface for FC Cable Connection (Installed in a Controller)
1
2
3
4
5
6
1. Host interface (CA#0)
2. Host interface port (CA#0, Port#0)
3. Host interface port (CA#0, Port#1)
4. Host interface (CA#1)
5. Host interface port (CA#1, Port#0)
6. Host interface port (CA#1, Port#1)
● iSCSI 10Gbit/s (10GBASE-SR) (for FC Cable Connection)
The ports on the host interface are used for connecting a controller to a server with an FC cable. This port uses a
Dual LC connector.
Figure 8 Host Interface for FC Cable Connections (Equipped with SFP+ Modules in All Ports and Installed in the
Controllers)
1
2
3
4
5
6
1. Host interface (CA#0)
2. Host interface port (CA#0, Port#0)
3. Host interface port (CA#0, Port#1)
4. Host interface (CA#1)
5. Host interface port (CA#1, Port#0)
6. Host interface port (CA#1, Port#1)
1. Component Names and LED Names
Controller Enclosures
14
FUJITSU Storage ETERNUS AF250 S2, ETERNUS AF250 All-Flash Arrays
Operation Guide (Basic)
Copyright 2019 FUJITSU LIMITED
P3AG-1842-06ENZ0
