4.3 Replacing the Pick Roller
fi-5530C Image Scanner Operator’s Guide 77
REPLACING CONSUMABLES
4
• For Windows 95 / Windows NT 4.0
1) When turning on the power, check that the scanner is connected to your PC.
2) Right click the [FUJITSU Scanner Control Center] icon in the task tray, then select
[Option]
3) Click the "Device Setting" tab.

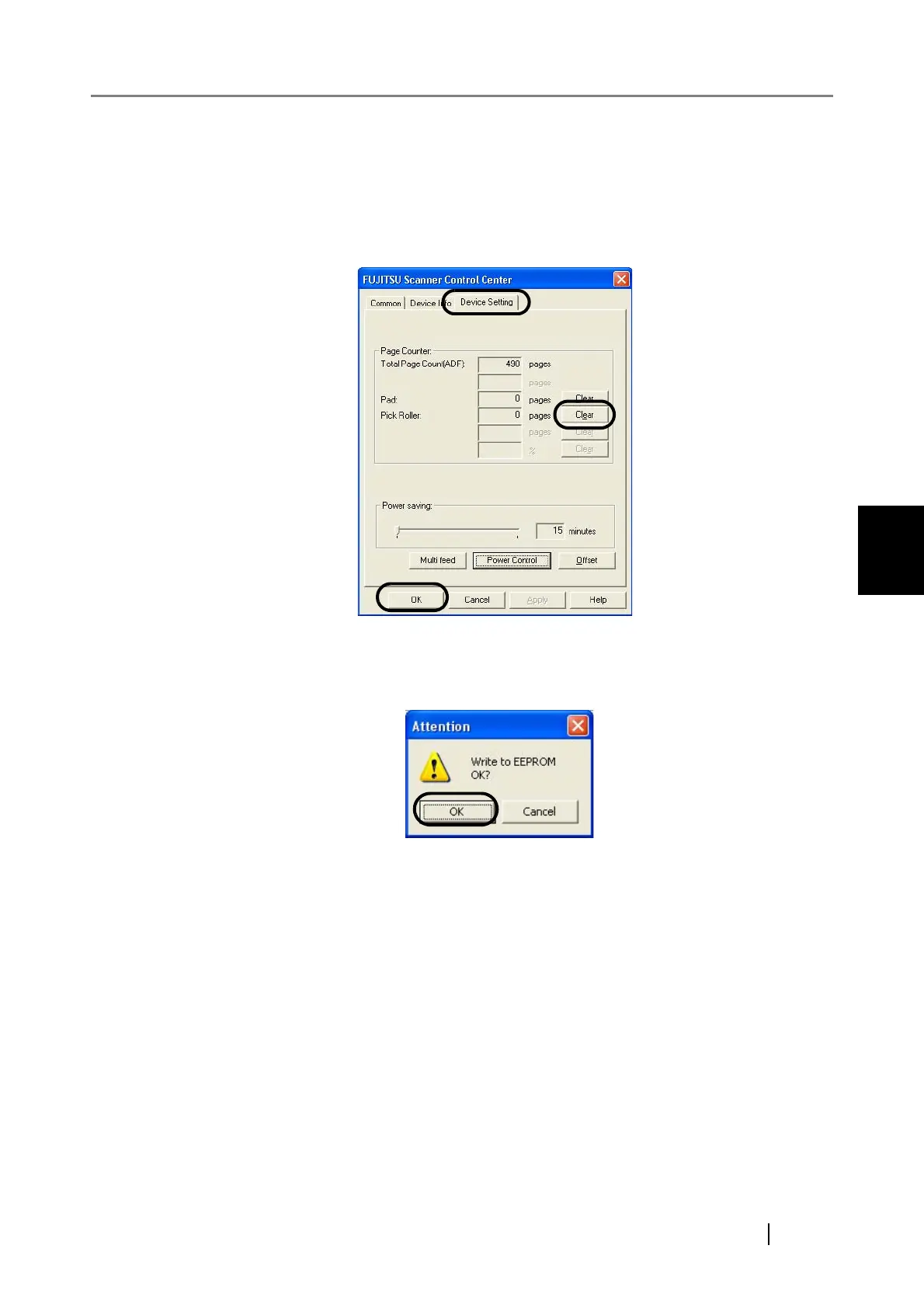

⇒ The following window appears.
4) After clicking the [Clear] button besides "Pick Roller" in [Page Counter], click the
[OK] button.
⇒ The following message is displayed.
Click the [OK] button.
The Pick roller counter returns to "0".
To Next Page
