System expansio ns
Install power supply
Board,
► Open the casing (see "Opening the casing", Page 31).
► Remove the rear slot cover plate or the inst alled PCIe board (see "
Installing the board", Page 45).
Please note: In this event, the PCIe board can no longe r be installed (see "
Important notes
on preparing your device for use via the Power over Ethern et module", Page 12).
2
1
3
2

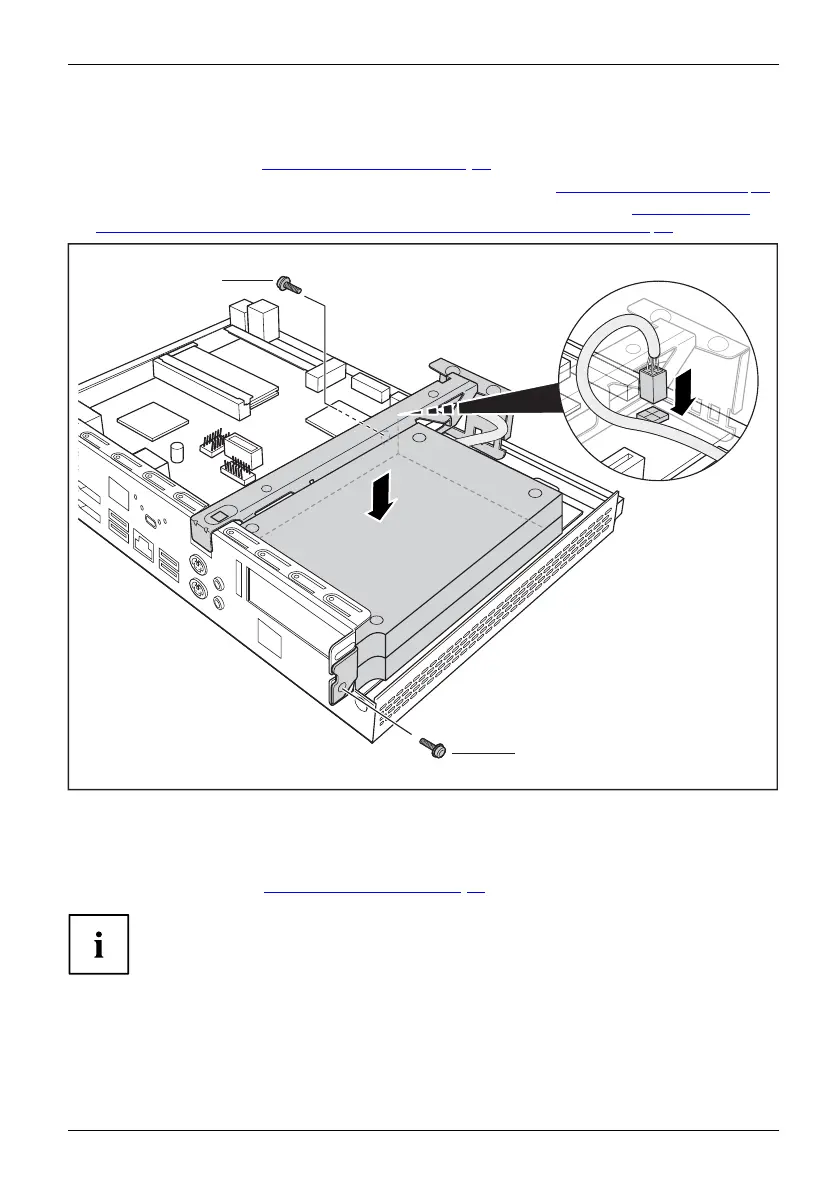

► Place the power supply in its location (1).
► Secure the power supply with the screws (2).
► Connect th e cables on the mainboard (3).
► Clo se the casing (see "
Closing the ca sing", Page 52).
Make sure that the c ables do not become trapped between the
casing and the components!
Fujitsu 49
