Fujitsu FUTRO S940 User Manual

System expansio ns
Install and remove board (optional)
You can install various boards (e.g. a graphics card) in the PCI/PCIe slot of your device.
Before using a graphics card for th e first time, please pay attention to
the notes in chapter "
Important notes on preparing your devi ce for use
via the Pow er over Ethernet m odule", Page 12.
A PCIe board is shown below. The installation and removal procedure is the
same for all types o f board, with the exception of th e power supply. You can find
information about the installation of an own power supply in chapter "
Install and
remove power supply (PS U, Power Supply Unit) (optional)", Page 48.
Installing the board
Board,
You can only install boards with a maximum length of 170 mm.
► Enter the required settings for the board.
► Open the casing (see "
Opening the casing", Page 31).
1
2

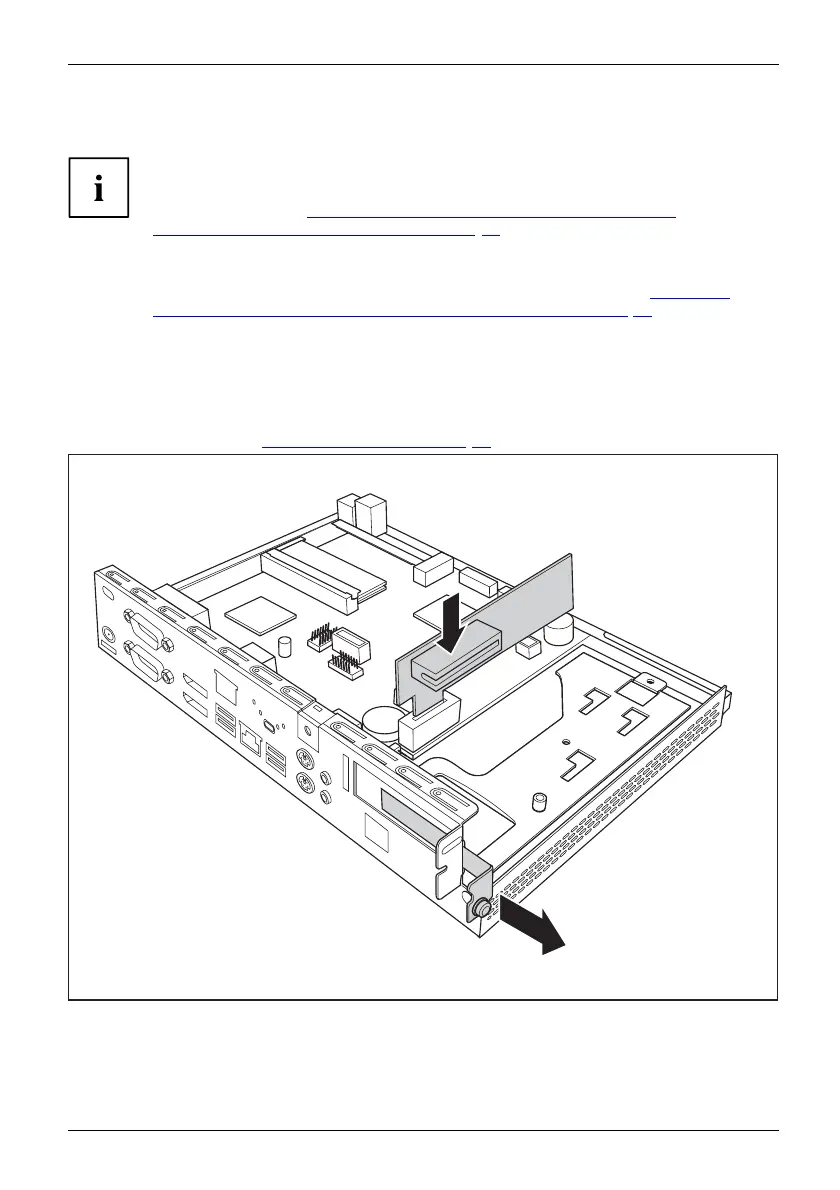

► Insert the riser card in its slot (1).
► Undo the screw (1) and remove the rear slot cover plate of the slot (2).
Fujitsu 45

Fujitsu FUTRO S940 Specifications

General

HD type	Not supported
Screen shape	-
LED backlight	No
Display diagonal	- \
Display resolution	- pixels
Stepping	B0
Tjunction	105 °C
Processor code	SR3S3
Processor cache	4 MB
Processor cores	4
Processor model	J5005
System bus rate	- GT/s
Processor family	Intel® Pentium®
Processor socket	BGA 1090
Processor codename	Gemini Lake
Processor frequency	1.50 GHz
Processor cache type	L3
Processor lithography	14 nm
Conflict-Free processor	Yes
PCI Express slots version	2.0
Processor boost frequency	2.80 GHz
Processor operating modes	32-bit, 64-bit
PCI Express configurations	4x1
Thermal Design Power (TDP)	10 W
Maximum number of PCI Express lanes	6
Memory types supported by processor	DDR4-SDRAM, LPDDR4-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	2400 MHz
Maximum internal memory supported by processor	8 GB
Internal memory	4 GB
Memory slots type	SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA
Storage media	SSD
SSD form factor	M.2
Number of storage drives installed	1
Number of execution units	18
On-board graphics card ID	0x3184
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 605
On-board graphics card family	Intel® UHD Graphics
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	250 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	800 MHz
Number of displays supported (on-board graphics)	3
AC input frequency	50 - 60 Hz
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Audio chip	Realtek ALC671
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Motherboard ARK ID	D3543-A
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 85 %
Sustainability certificates	EPEAT Gold
Product color	Black
Product type	All-in-One workstation
Processor ARK ID	128984
Processor package size	25 x 24 mm

Weight and Dimensions

Depth (with stand)	193 mm
Width (with stand)	90 mm
Height (with stand)	261 mm
Weight (with stand)	- g
Width (without stand)	52 mm
Height (without stand)	250 mm
