RX300 S6 Options Guide 65
Accessible drives and LSP/LSD

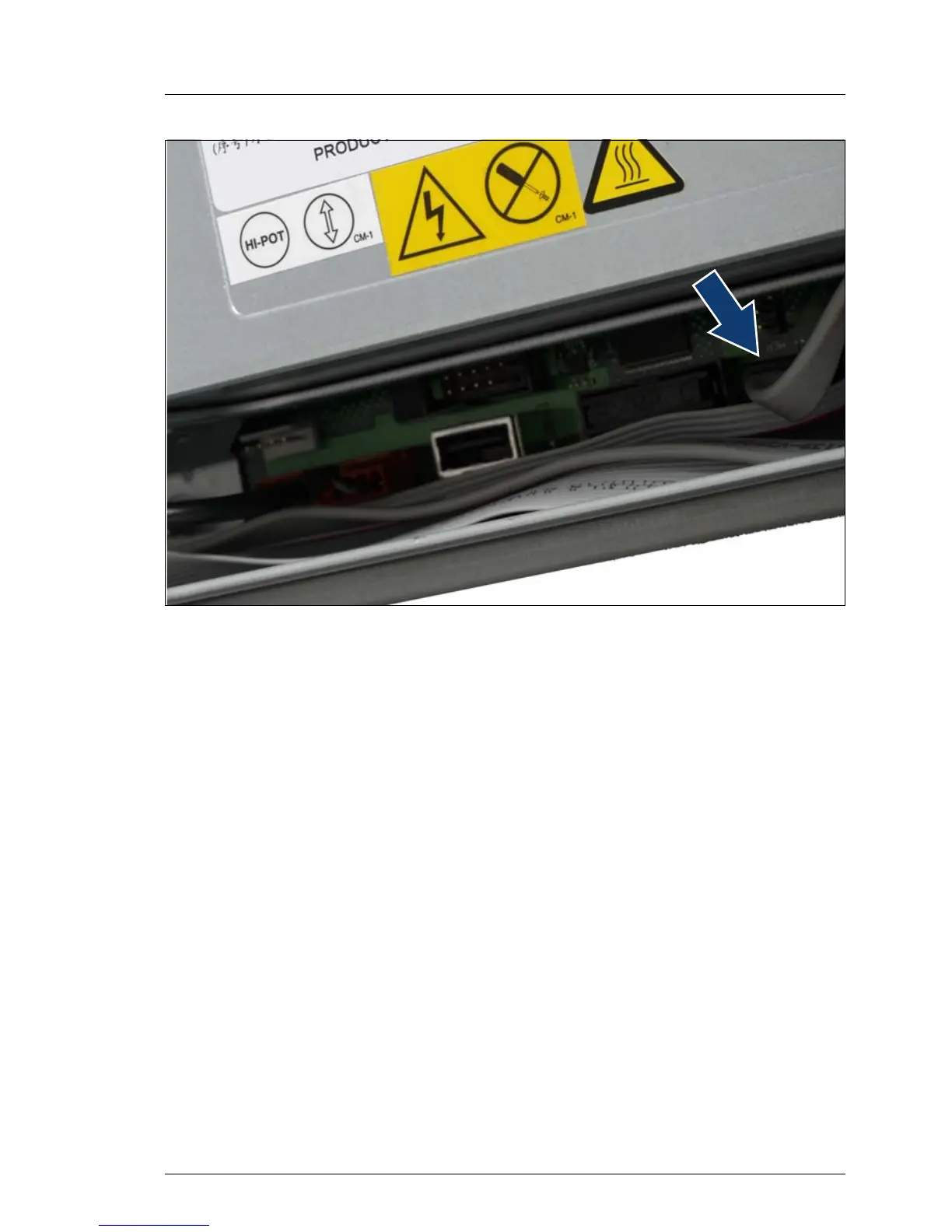

Figure 35: Connecting the SATA cable to the system board
Ê Route the cable into the cable guide.
Ê Connect the SATA cable to the connector SATA1 on the system board (see
the cabling plans in the chapter "Appendix" on page 125).
Ê Replace the fan box (see section "Installing a fan box" on page 117).
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter "Completion" on page 117.
