70 Options Guide RX300 S6
Accessible drives and LSP/LSD

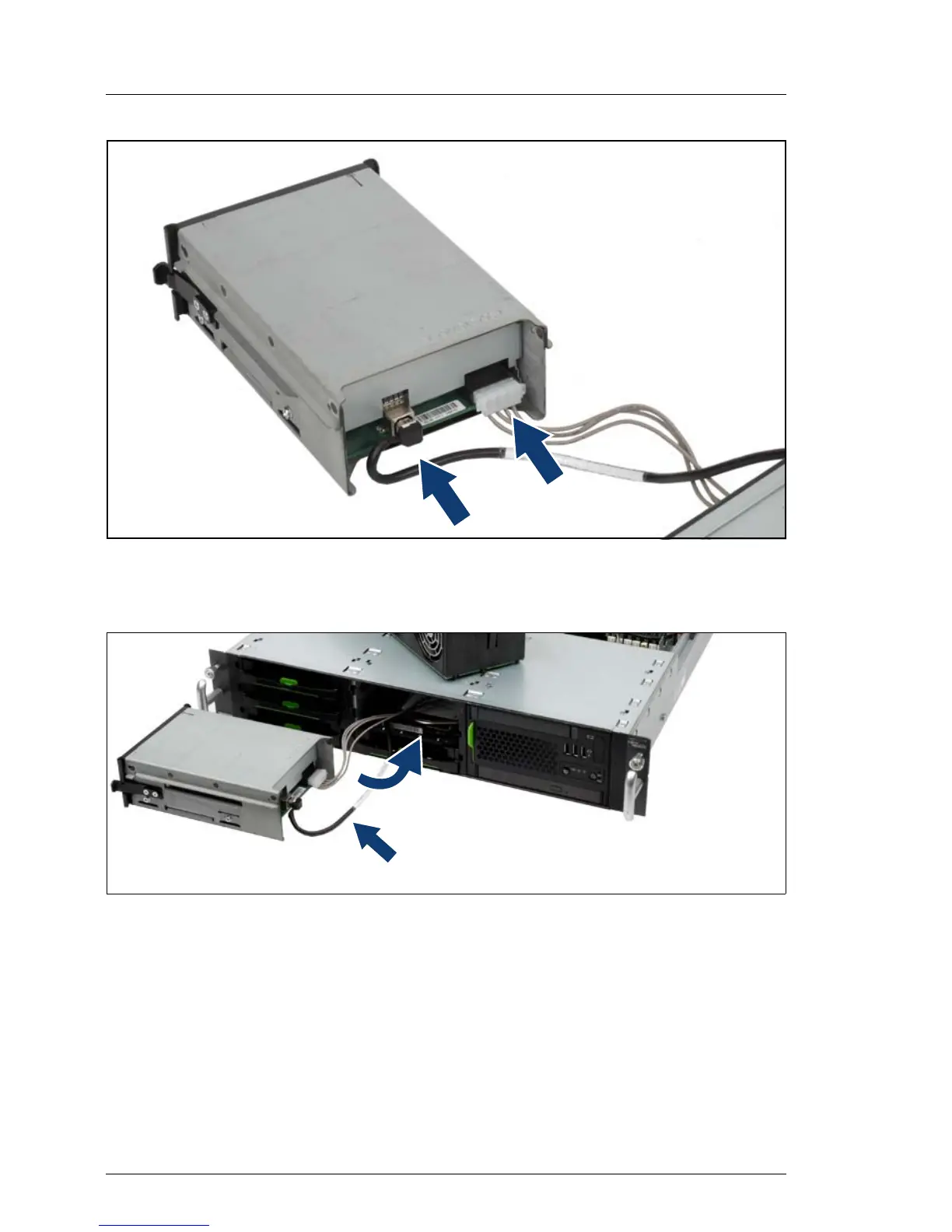

Figure 43: Connecting the cables to the USB tape drive
Ê Connect the two cables to the USB tape drive.
Figure 44: Pushing the USB tape drive into the server
Ê Before pushing in the USB tape drive route the USB cable und the connector
to the right side.
