RX300 S6 Options Guide 97
Expansion cards and BBU
I The side of the plug with 2 pin rows must be facing upward.
Installing the iBBU08 for a SAS/SATA RAID controller on the air duct

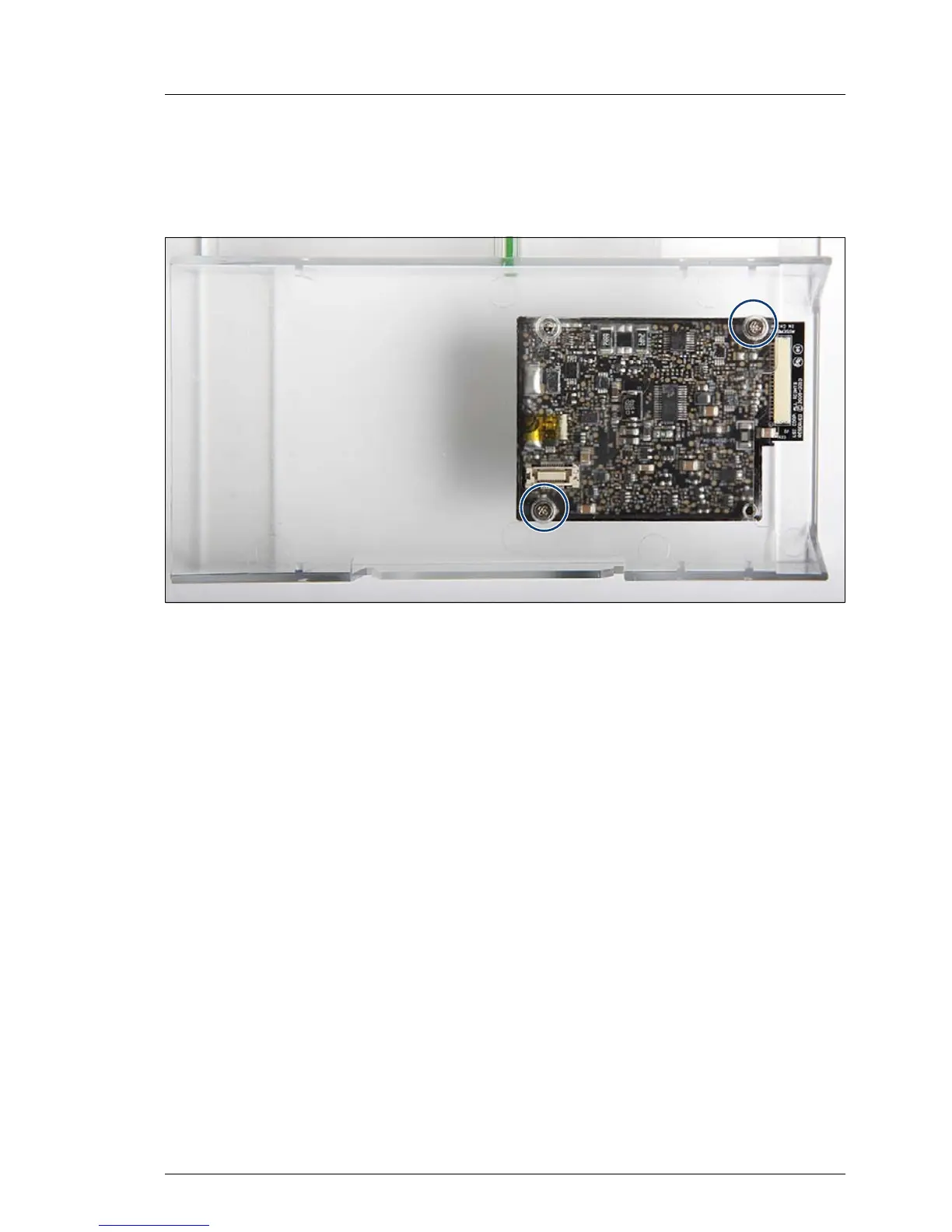

Figure 74: Installing the iBBU08 for a SAS/SATA RAID controller on the air duct
Ê Place the BBU on the air duct as shown.
I The iBBU08 must be placed in such a way that the 2 holes are in line
with the bolts on the BBU and one hole is not used.
Ê Secure the BBU to the air duct using the 2 screws.
