RX300 S6 Options Guide 99
Expansion cards and BBU
Connecting the BBU cable for SAS/SATA RAID controllers

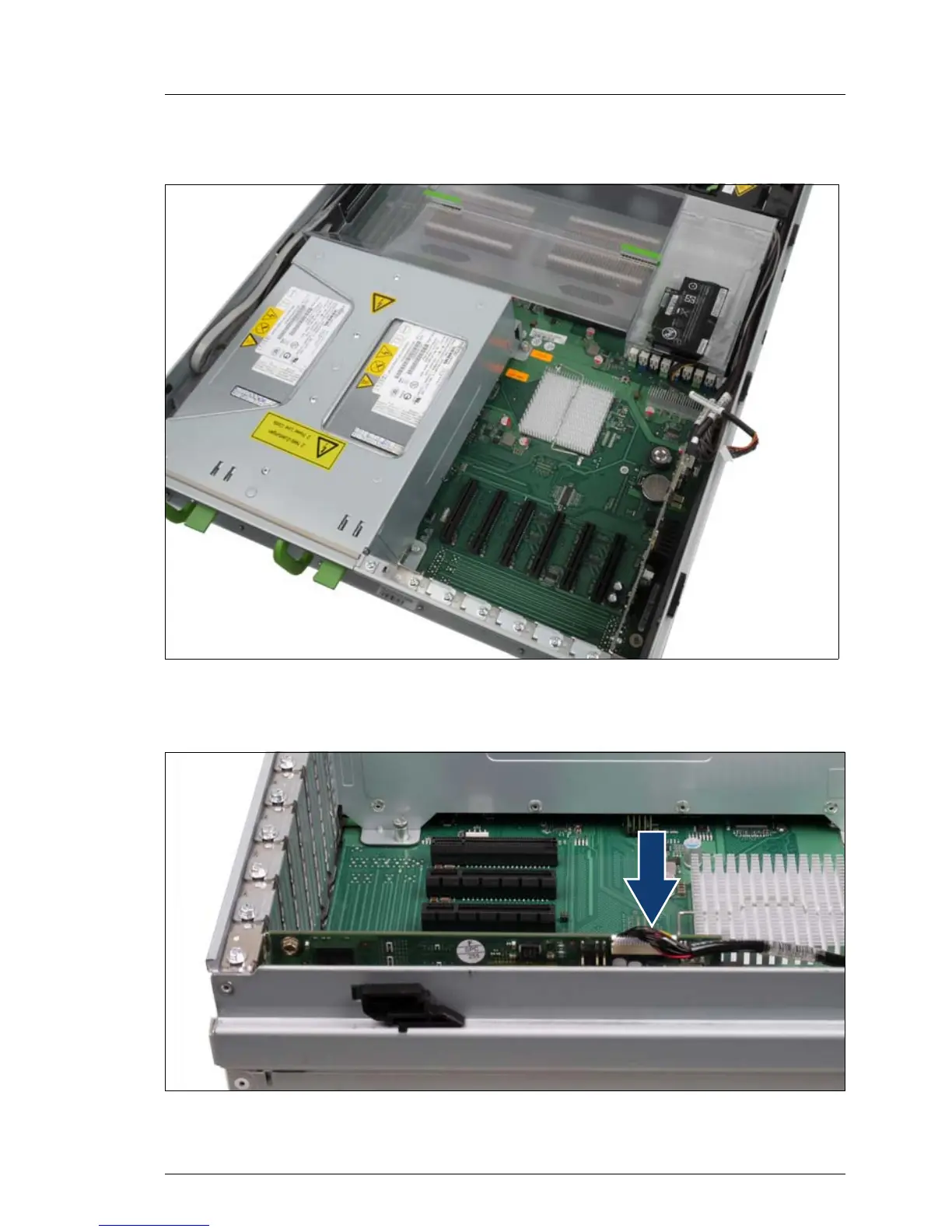

Figure 76: Inserting the air duct
Ê Insert the air duct.
Figure 77: Connecting the BBU to a SAS/SATA RAID controller
