TX200 S5 Operating Manual 101
CSS components Replacement of non-hot-plug components
8.2.2 Replacing a memory module
8.2.2.1 Removing a defective memory module

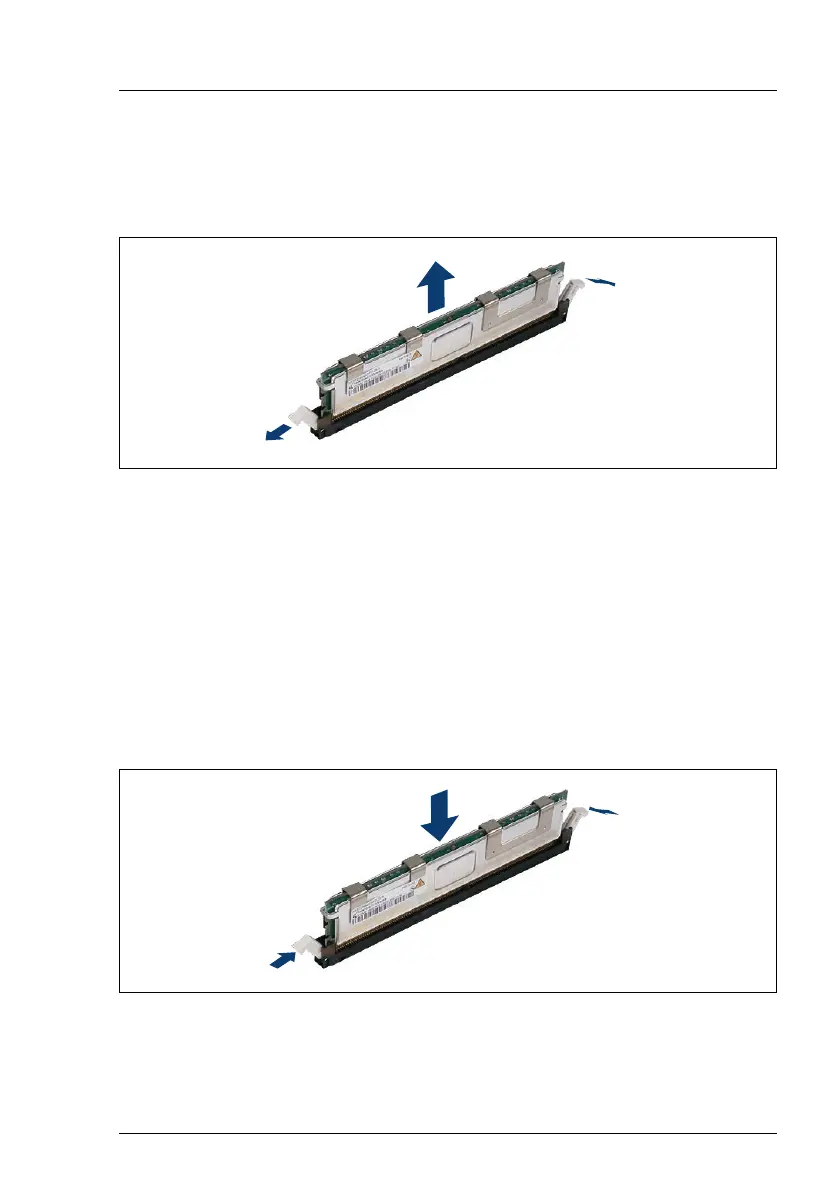

Figure 30: Removing a memory module
Ê Press the holders on either side of the mounting location concerned outward
(1).
Ê Pull the defective memory module out of the slot (2).
8.2.2.2 Installing a new memory module
V CAUTION!
Please note the equipping rules in the technical manual for the system
board D2709.
Figure 31: Inserting a memory module
Ê Carefully press the memory module into the slot (1) until the fastening tabs
on both sides of it engage (2).
1
2
1
2
1
2
