TX200 S5 Operating Manual 105
CSS components Replacement of non-hot-plug components
8.2.5 Reinstalling the fans and closing the server
8.2.5.1 Installing system fan 1 (and 3)

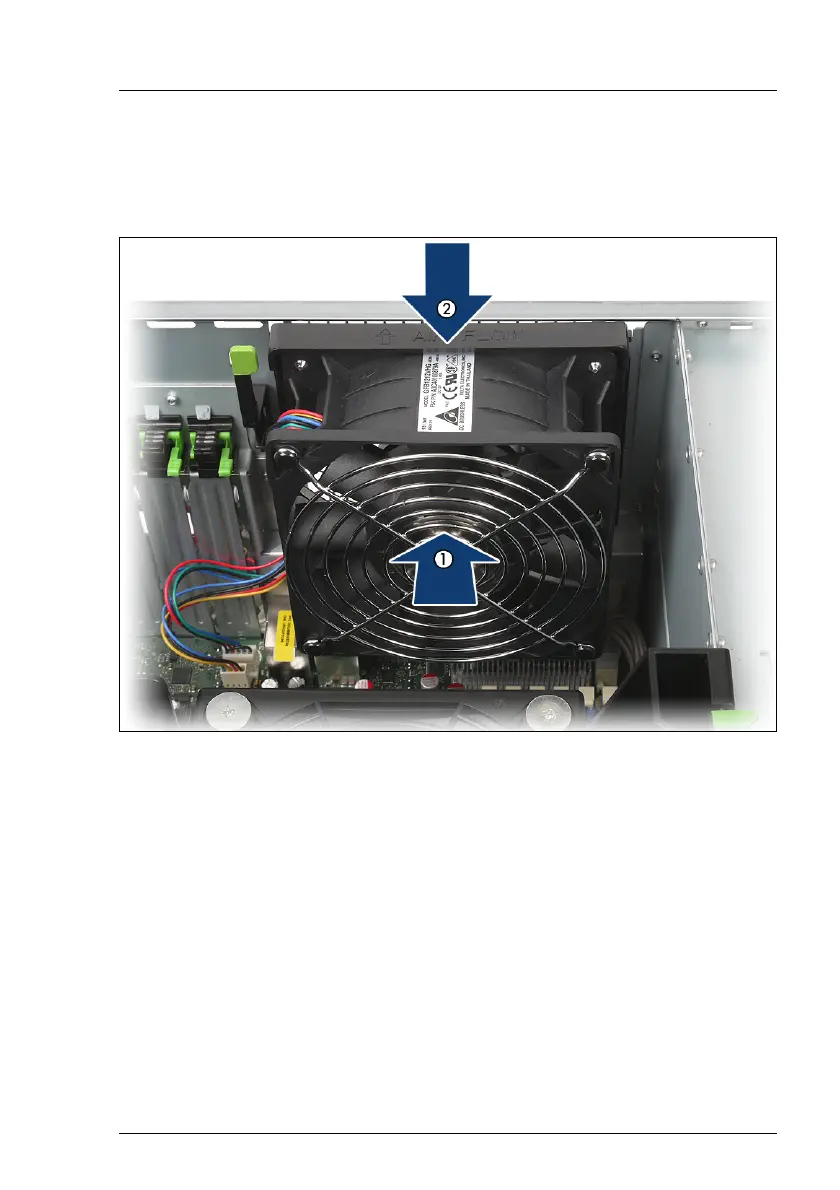

Figure 34: Installing system fan 1 (and 3)
Ê Place the hooks of system fan 1 (and 3) into the recesses on the rear of the
server (1).
Ê Push system fan 1 (and 3) in the direction of the arrow until the locking lever
engages (2).
Ê Connect the fan cable to the connector FAN1 (if there is a second fan cable,
connect this in FAN3) on the system board (see the technical manual for the
system board D2709 on the PRIMERGY ServerView Suite DVD 2).
