TX200 S5 Operating Manual 47
Installing the hardware Installing/removing the rack model
4.3.2 Installation in PRIMECENTER/DataCenter rack
For installation in a PRIMECENTER/DataCenter rack, the following parts are
required:
– Support bracket
– one support system on the left and one on the right
– M5 centering fixtures (screws with integrated plugwashers)
I – The descriptions and figures in this section refer to the current
support system.
– General information regarding server installation in the rack is
included in the technical manual for the appropriate rack.
Fitting the support bracket
When mounting the left support system in the corresponding rack, the supplied
support bracket must first be mounted flush with the underside of the device on
the rear left support upright.

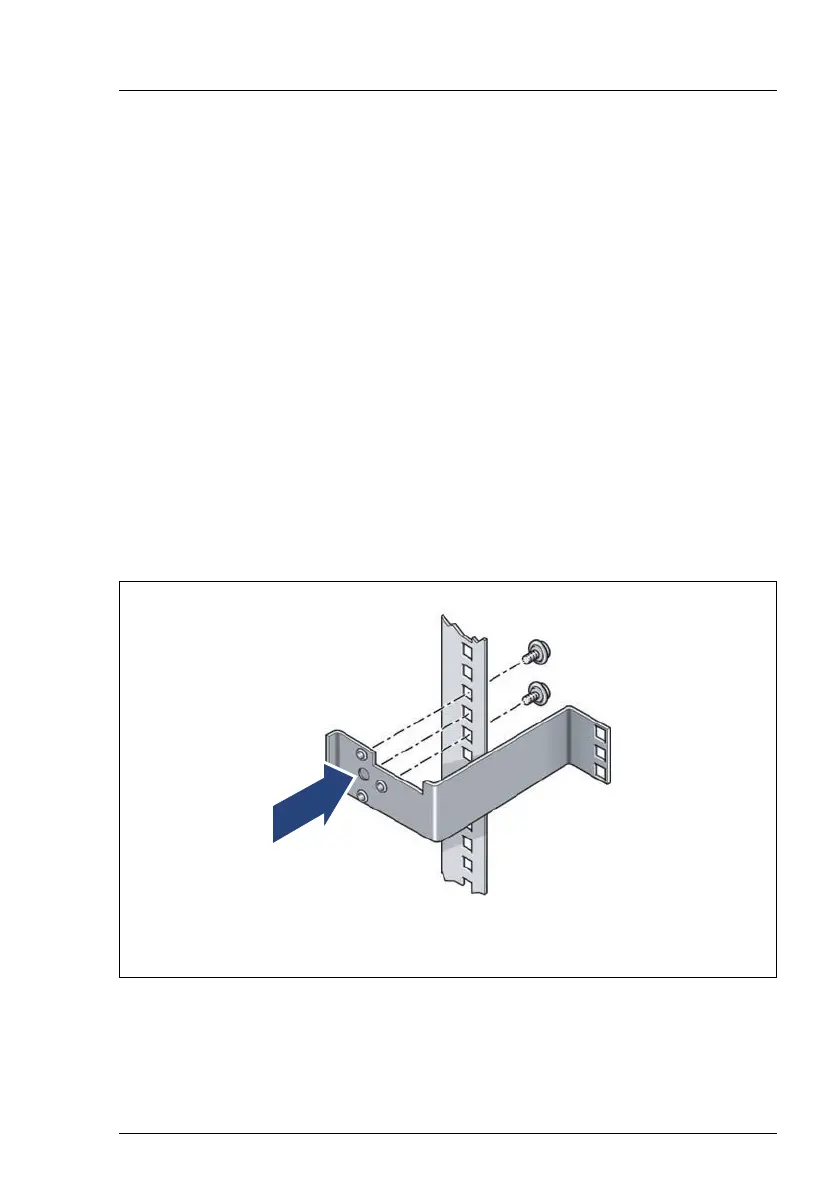

Figure 4: Fitting the support bracket
Ê Position the support bracket at the corresponding height on the rear left
support upright, (place knob in the corresponding hole) (1) and secure it with
the two supplied M5 centering fixtures (2).
1
2
