TX200 S5 Operating Manual 97
CSS components Replacement of non-hot-plug components
8.2.1 Opening the server and identifying the defective
CSS component
8.2.1.1 Opening the housing
V CAUTION!
The device can be seriously damaged if it is opened without authori-
zation or if repairs are attempted by untrained personnel.
It is essential to observe the safety instructions in chapter “Important
notes” on page 27.

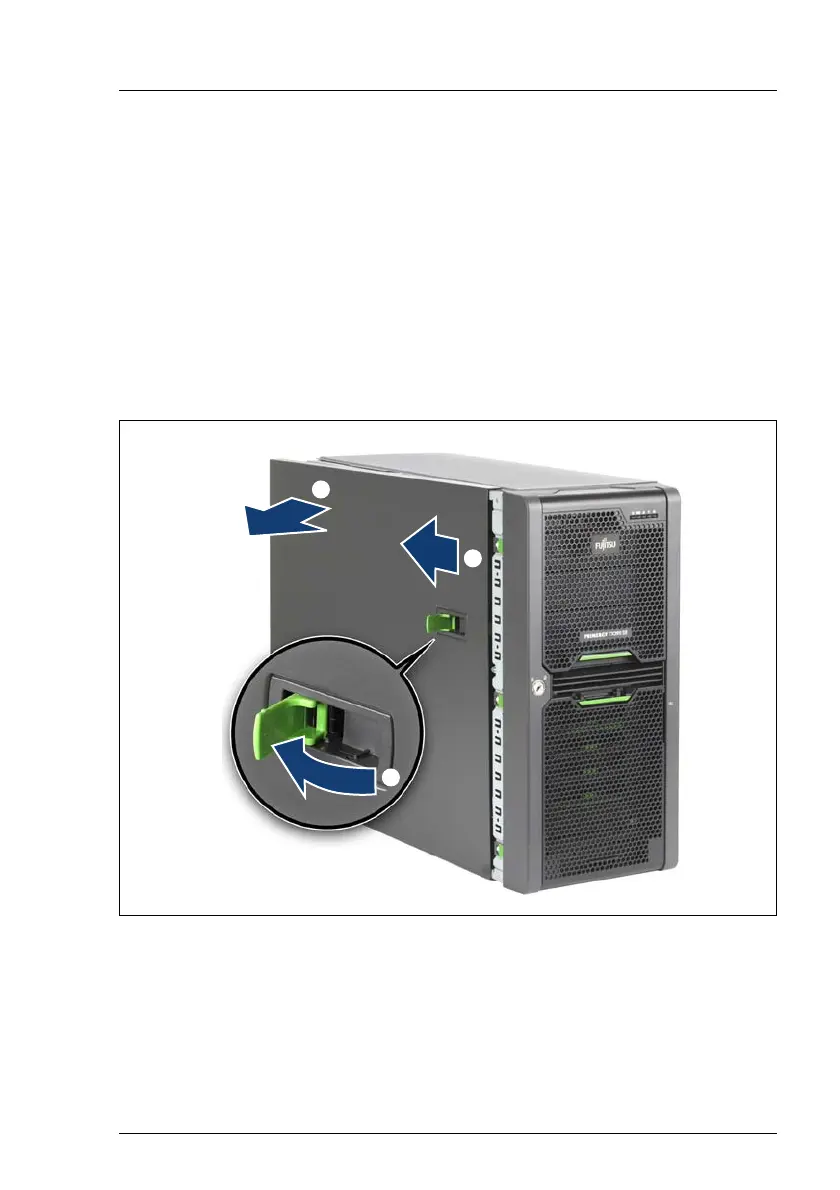

Figure 25: Opening the housing (example: floorstand model)
Ê Pull the locking lever as far as it will go (1)
This pushes the side cover backward (2).
Ê Remove the side cover (3).
/
