106 Operating Manual TX200 S5
Replacement of non-hot-plug components CSS components
8.2.5.2 Installing system fan 2 (and 4)
Ê Connect the fan cable to the connector FAN2 (if there is a second fan cable,
connect this in FAN4) on the system board (see the technical manual for the
system board D2709 on the PRIMERGY ServerView Suite DVD 2).

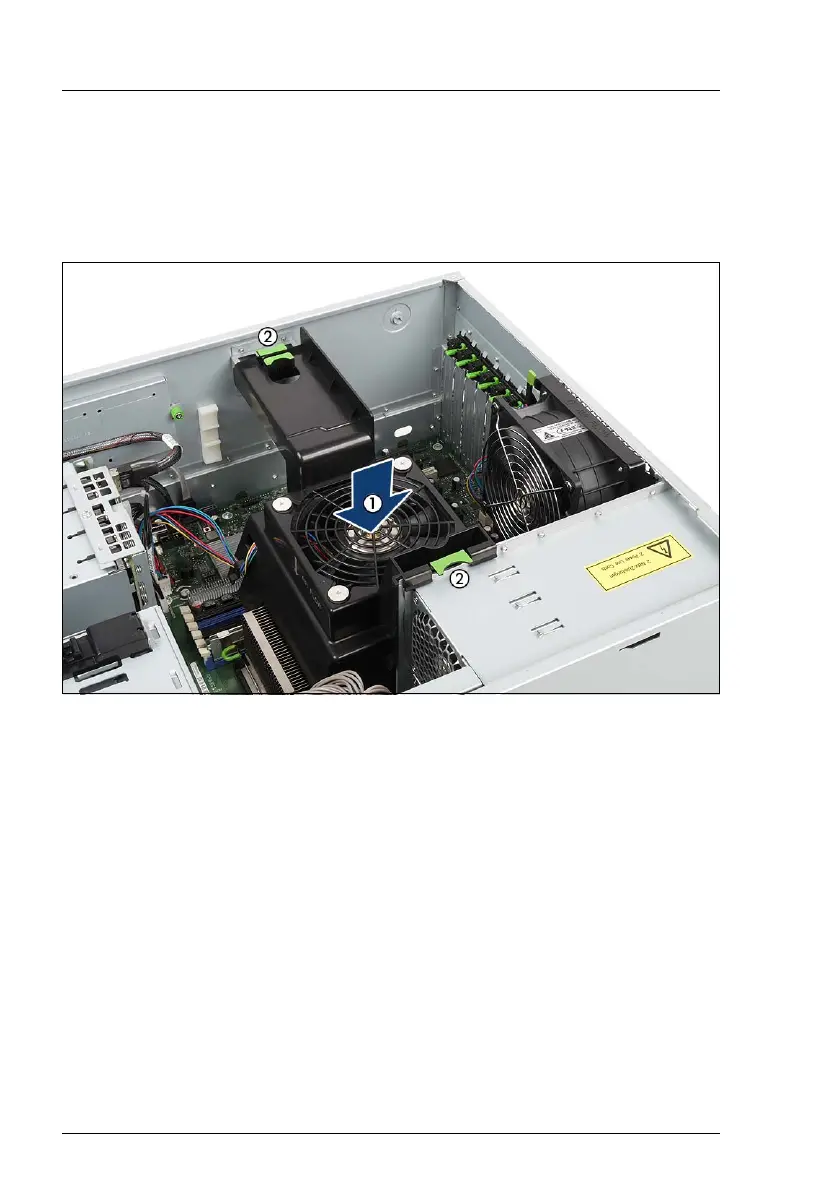

Figure 35: Installing system fan 2 (and 4)
Ê Carefully insert the air duct with the integrated system fan 2 (and 4) (1).
Make sure that the locks (2) of the air duct engage in the housing bracket
and in the recess of the fixing plate (standard power supply) or the power
supply cage (redundant power supply).
