8.1.2.6 Installing the HDD module
Unlocking the HDD module

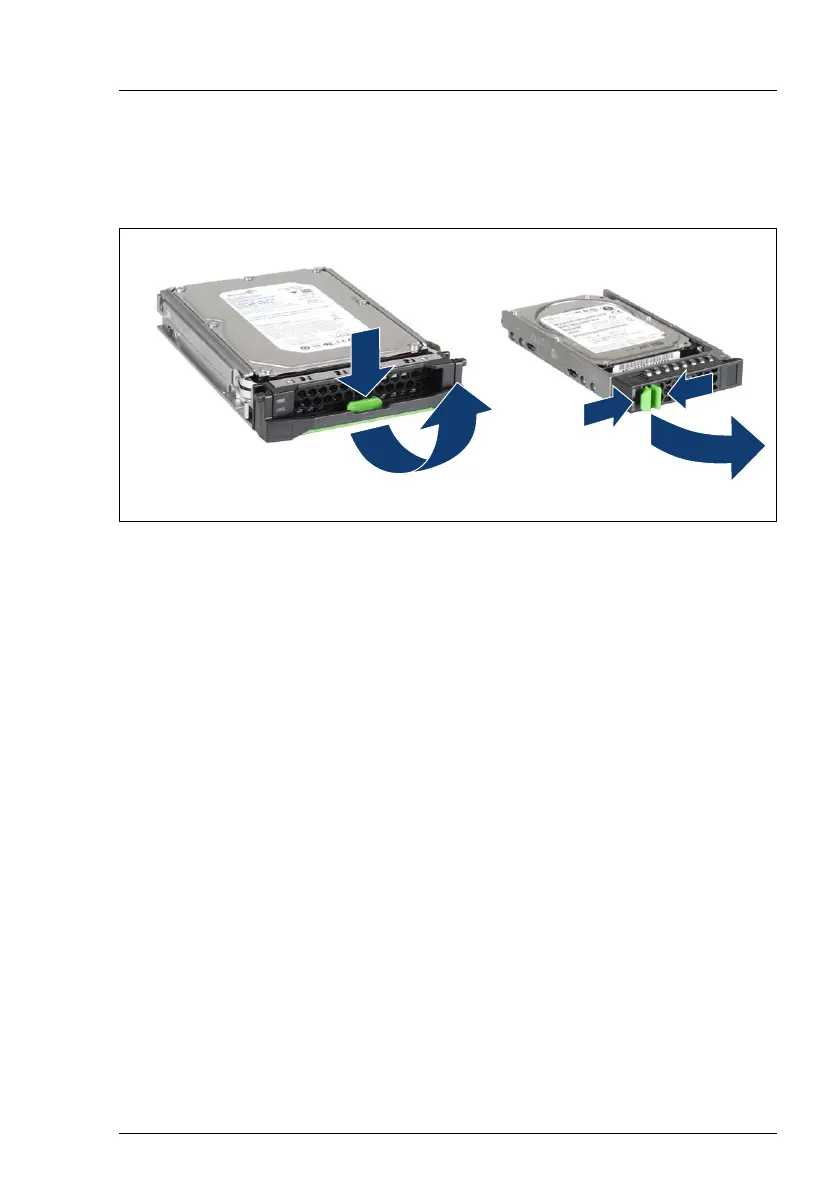

Figure 23: Unlocking the 3.5-inch and 2.5-inch HDD modules
Ê Release the locking mechanism by pressing the locking button (1).
Ê Push the handle of the HDD module fully in the direction of the arrow (2).
The HDD module is now unlocked.
