Installing the hardware Connecting devices to the serve
r
4.4 Connecting devices to the server
The ports for external devices are on the rear of the server. The additional ports
available on your server depend on the expansion cards installed.
The standard ports are indicated by symbols and color coding.

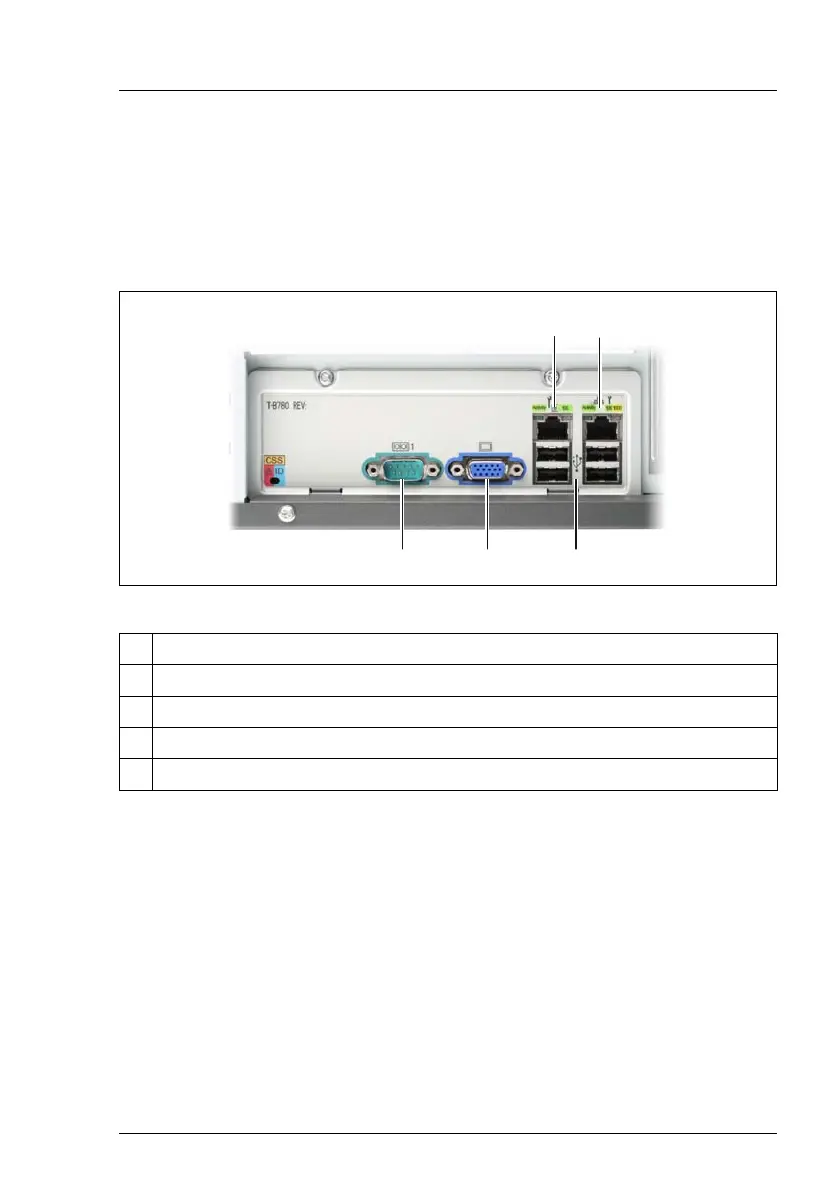

Figure 7: Connection panel on the rear
The corresponding indicators are explained in section “Rear of server” on
page 67 .
I Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
Ê Connect the devices.
Three additional USB ports are located on the front of the server (see figure 13
on page 62).
1 LAN port 1 (service LAN)
2 LAN port 2
3 USB ports (black)
4 Monitor port (blue)
5 Serial port COM1 (turquoise)
