Fujitsu PRIMERGY TX200 S5

TX200 S5 Operating Manual 69
Installation and operation Control and display elements
LAN indicators

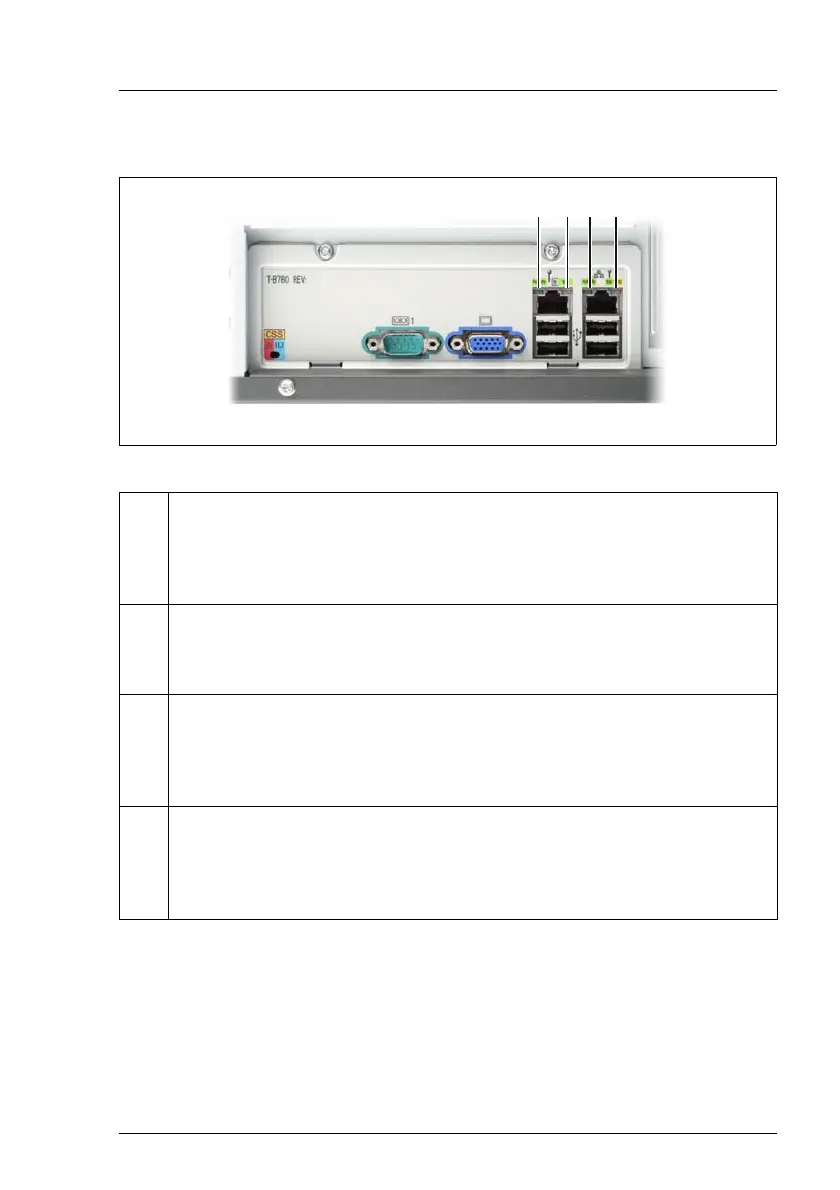

Figure 16: Indicators on the connection panel: LAN indicators
I Depending on the settings in the BIOS, the standard LAN port may also
be used as a service LAN port. You will find further information in the
"D2709 BIOS Setup Utility for PRIMERGY TX200 S5" manual.
1 LAN activity indicator (service LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
2 LAN transfer rate indicator (service LAN)
Lights up green for a LAN transfer rate of 100 Mbit/s.
Does not light up for a LAN transfer rate of 10 Mbit/s.
3 LAN activity indicator (standard LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
4 LAN transfer rate indicator (standard LAN)
Lights yellow for a LAN transfer rate of 1 Gbit/s.
Lights up green for a LAN transfer rate of 100 Mbit/s.
Does not light up for a LAN transfer rate of 10 Mbit/s.
/
