104 Options Guide TX200 S6
Conversion from a floorstand model to a rack model
Ê Pull the front panel module forward out of its mounting location until you can
pull the front panel cable and the USB cable out of the front panel module.
Ê Remove the front panel cable and the USB cable.
Ê Remove the front panel module.
Ê Turn the front panel module through 90° to the left.
Ê Push the front panel module halfway into the upper bay of the drive cage.
Ê Connect the front panel cable and the USB cable to the front panel module.

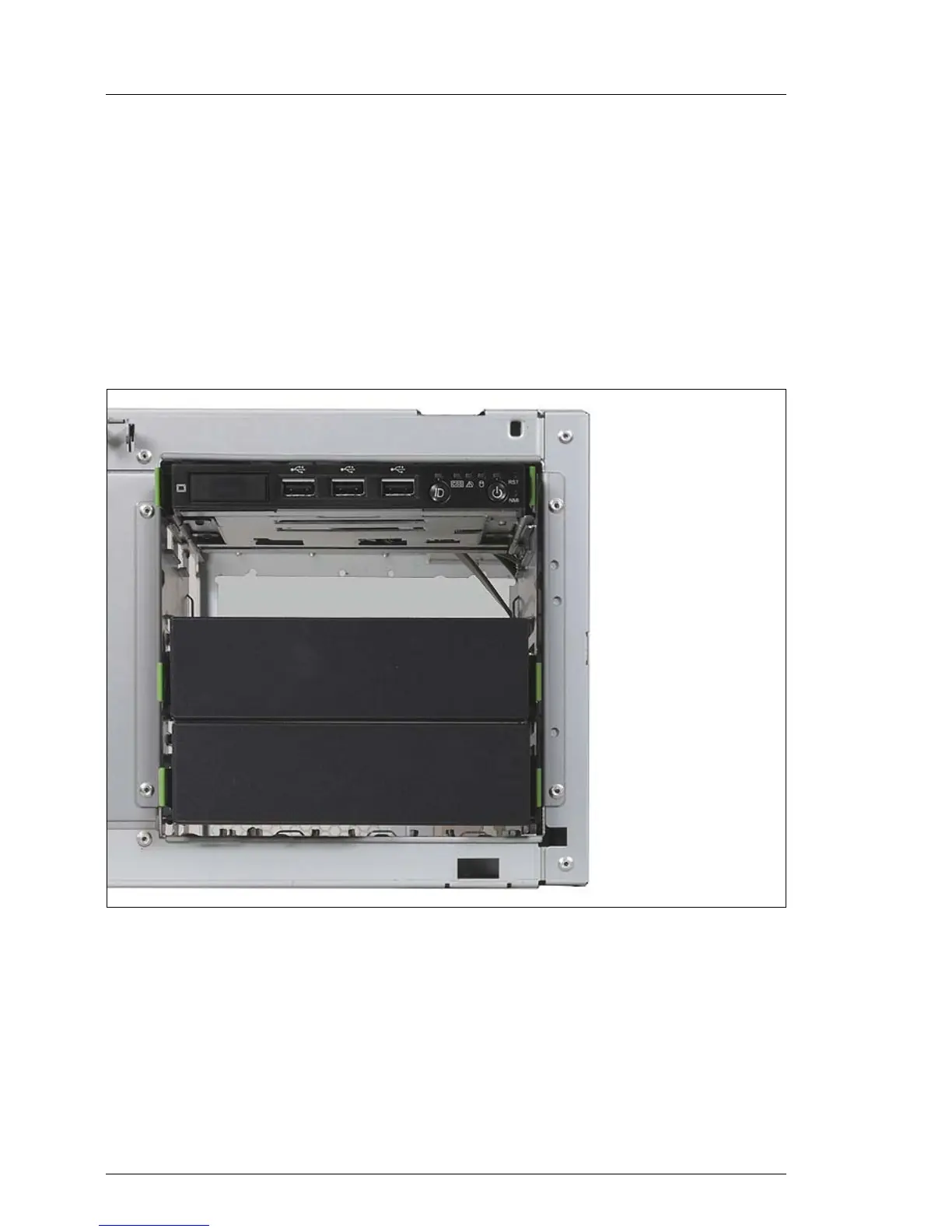

Figure 87: Installing the front panel module
Ê Now push the front panel module fully into the upper bay of the drive cage.
Ê Turn the drives removed beforehand through 90° to the left.
Ê Turn the dummy covers removed beforehand through 90° to the left.
Ê Install the drives and dummy covers in the drive cage.
Ê Reestablish all connections to the drives.
