106 Options Guide TX200 S6
Conversion from a floorstand model to a rack model
Ê Attach the rack front cover as described in the section "Attaching the rack
front cover" on page 111.

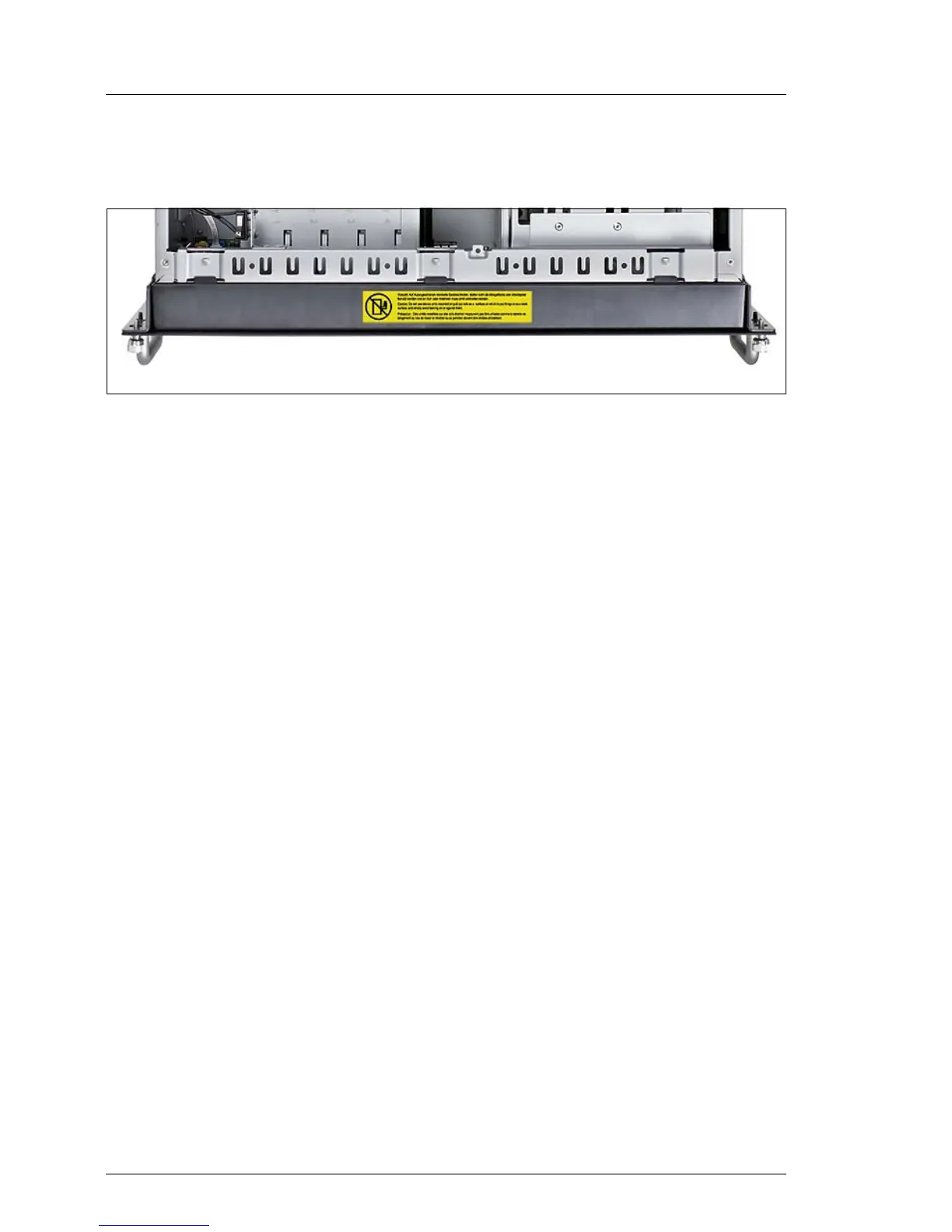

Figure 90: Attaching the caution label
Ê Attach the enclosed caution label as shown in the photo (except for the
Japanese market).
Ê Close the server as described in the chapter "Completion" on page 107.
Ê Install the rack model in the rack as described in the operating manual.
To enable the rack model to be shown correctly in ServerView Management
user interfaces, proceed as follows:
Ê Boot the system from the ServerView Suite DVD1. The ServerView
Installation Manager is started.
Ê In the first window, select your preferred GUI language.
Ê Select "No status backup" under "Status backup media", and continue by
choosing "Continue".
Ê Select "Maintenance".
Ê Select "Server Configuration Manager".
Ê Activate the box for the rack model and store the setting with choosing
"Save".
