Fujitsu PRIMERGY TX200 S6

60 Options Guide TX200 S6
Accessible drives and LSD/LSP

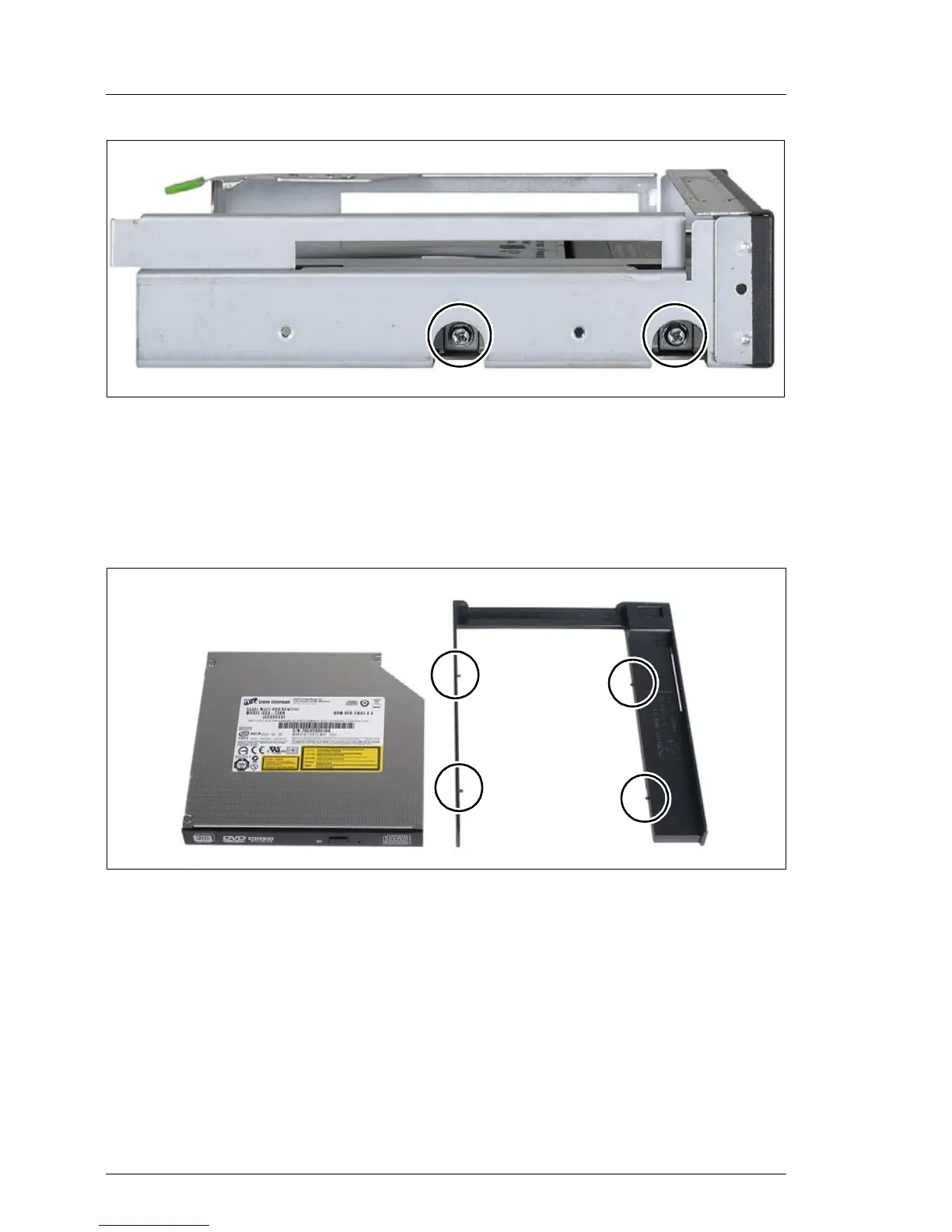

Figure 30: Fastening the 3.5-inch frame with the LSP in the multibay
Ê Fasten the 3.5-inch frame in the multibay using two M3 x 6 mm screws on
either side.
Installing the slimline DVD
Figure 31: Inserting the slimline DVD in the frame
Ê Insert the slimline DVD in the frame.
Ensure that the four pins on the frame engage with the screw holes on the
DVD and fix them in this position.
