Fujitsu PRIMERGY TX200 S6

TX200 S6 Options Guide 61
Accessible drives and LSD/LSP

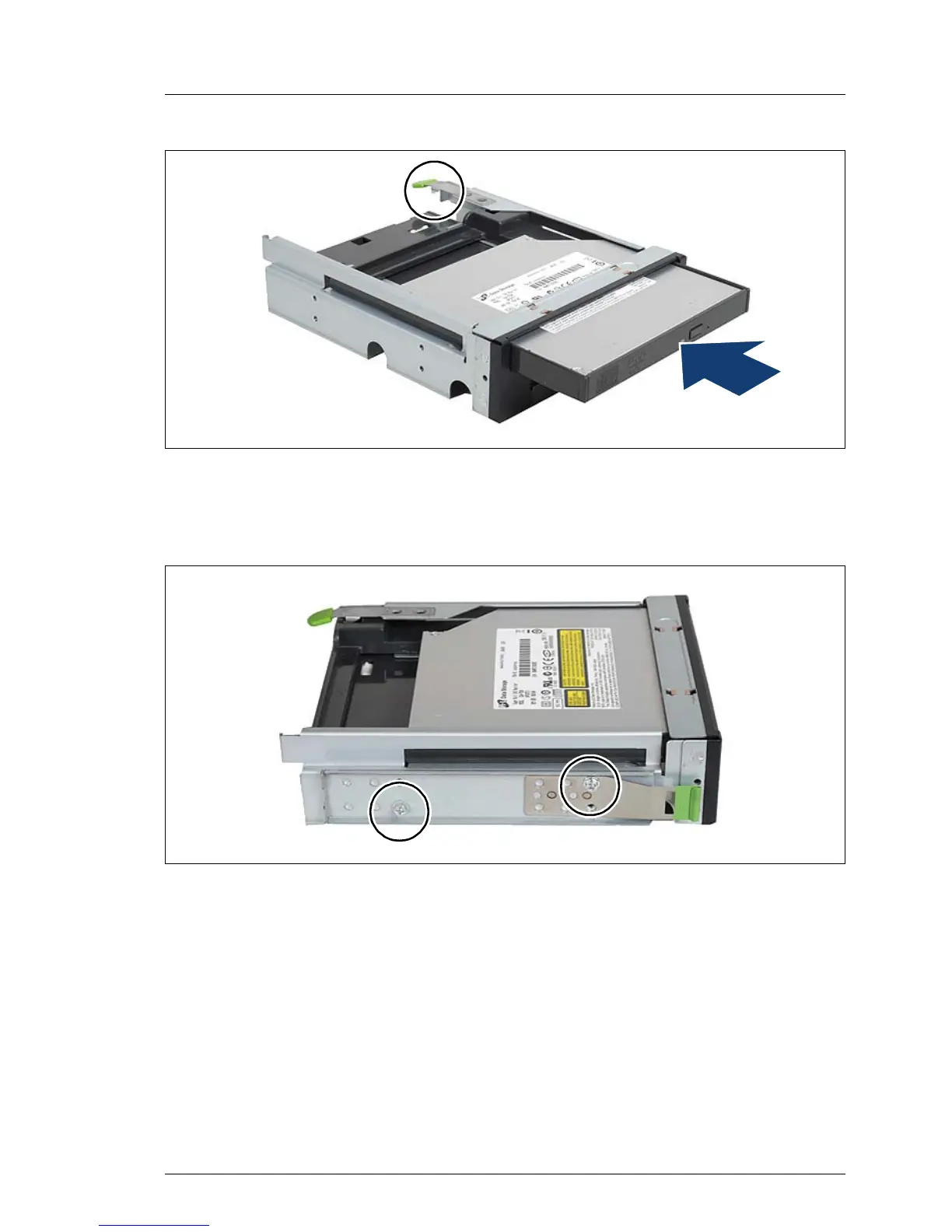

Figure 32: Sliding the slimline DVD in the multibay
Ê Slide the slimline DVD in the multibay from the front until it engages (see the
snap-in hook in the circle).
Figure 33: Attaching EasyClick rails to the multibay
Ê Screw the EasyClick rails onto either side using two M3 x 4.5 mm screws.
