Fujitsu PRIMERGY TX200 S6

62 Options Guide TX200 S6
Accessible drives and LSD/LSP

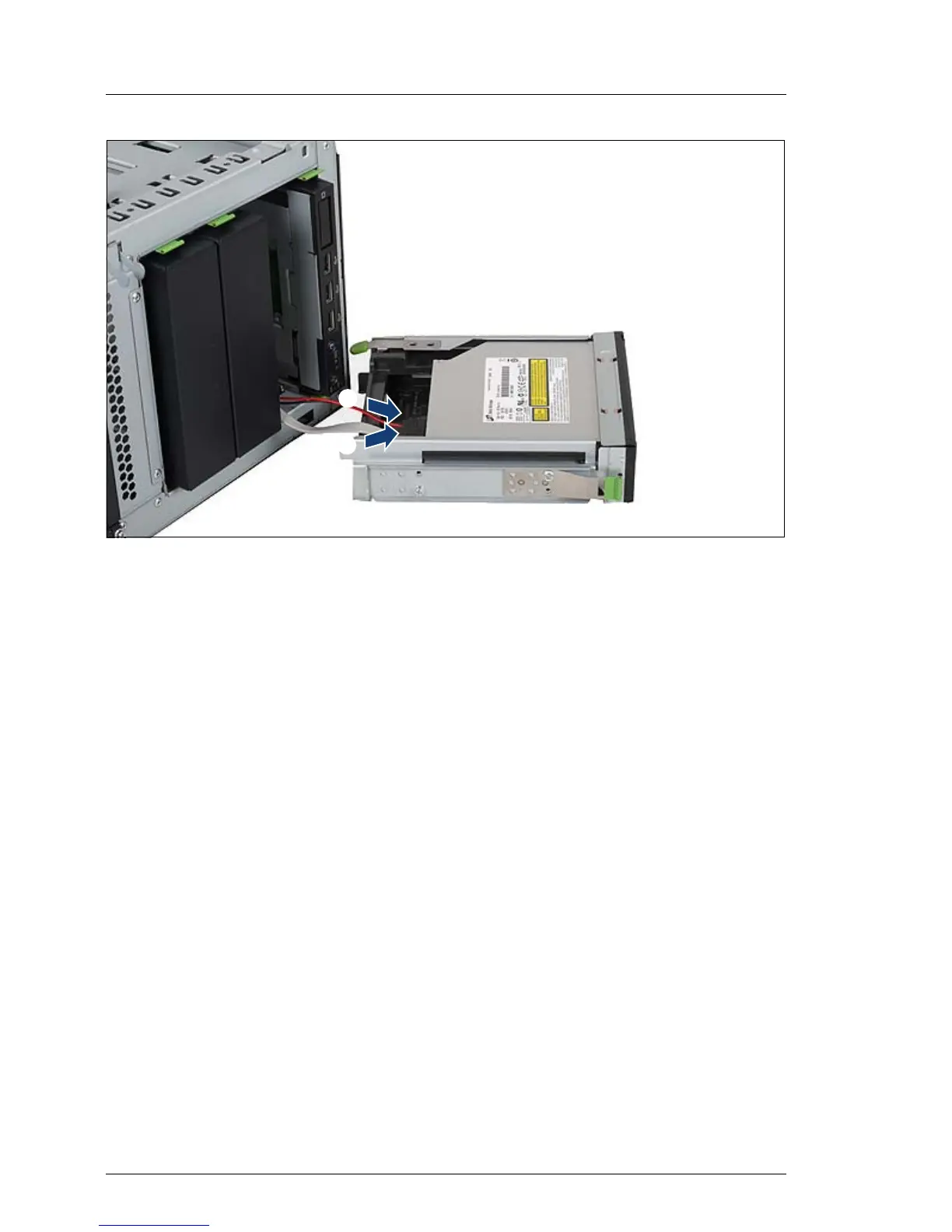

Figure 34: Routing the slimline DVD
I The DVD SATA cable (T26139-Y3928-V205) is already pre-mounted and
connected to the SATA5 connector of the system board.
Ê Disconnect the DVD SATA cable from the SATA5 connector of the system
board in order to move the cable.
Ê Pull the DVD SATA cable out of the bay towards the front.
Ê Pull the power cable (P19 plug) out of the bay towards the front.
Ê Connect the power cable to the slimline DVD.
Ê Connect the DVD SATA cable to the slimline DVD.
Ԙ
ԙ
