74 Options Guide TX200 S6
Expansion cards and BBU
I For the installing order see the configurator of the server:
https://sp.ts.fujitsu.com/dmsp/docs/cnfgtx200s6.pdf
(for the EMEA market)
http://primeserver.fujitsu.com/primergy/system.html
(for the Japanese market)
Ê Open the server and remove system fan 2 (or 2&4) as described in the
chapter "Preparation" on page 27.

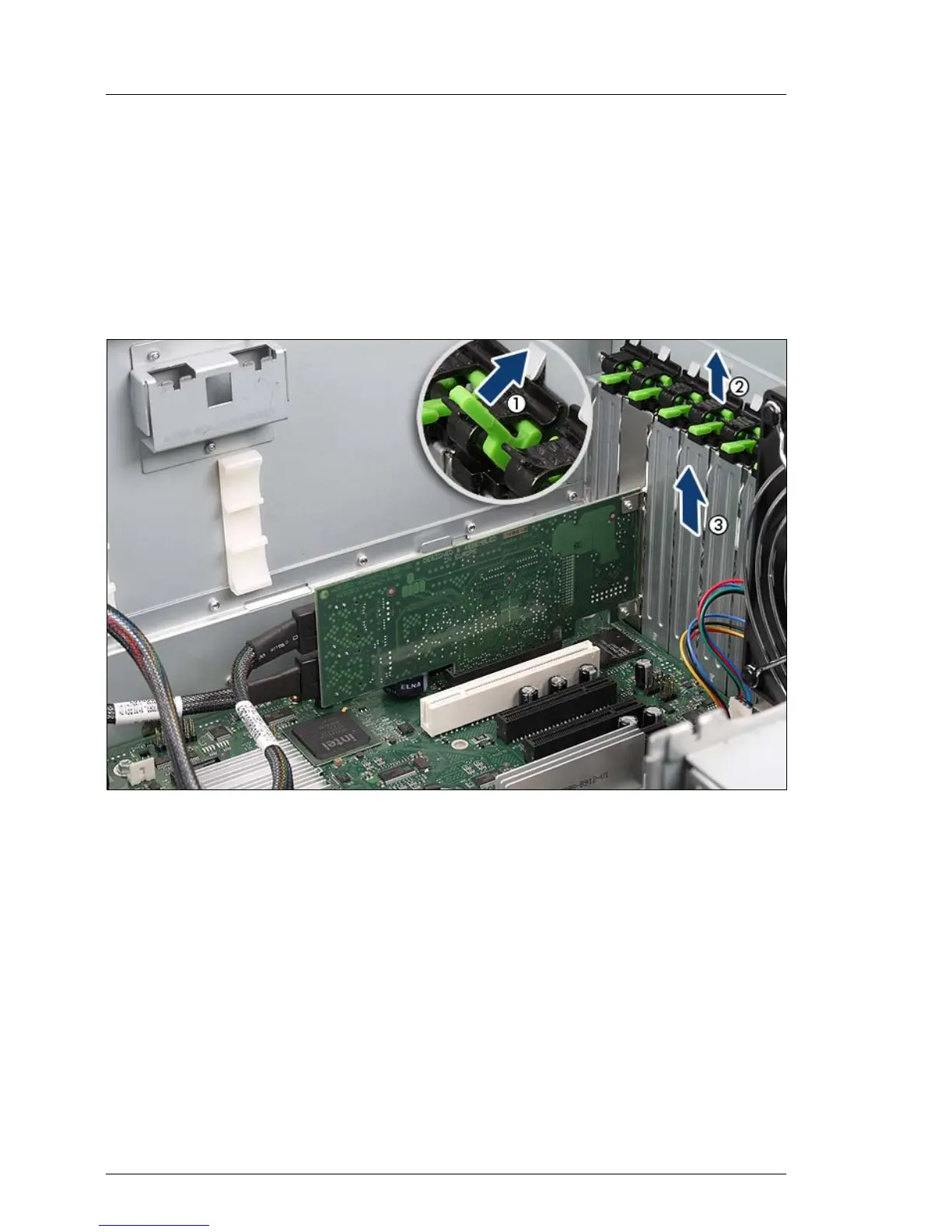

Figure 48: Removing the slot cover
Ê Open the slot locking bar (1).
Ê Remove the slot locking bar (2).
Ê Remove the PCI slot cover (3).
V CAUTION!
Keep the slot cover for further use. If the expansion card is removed
again and not replaced with a new one, the slot cover has to be
reinstalled to comply with applicable EMC regulations and satisfy
cooling requirements and fire protection measures.
