Conversion to hot-plug PS and redundant system fans

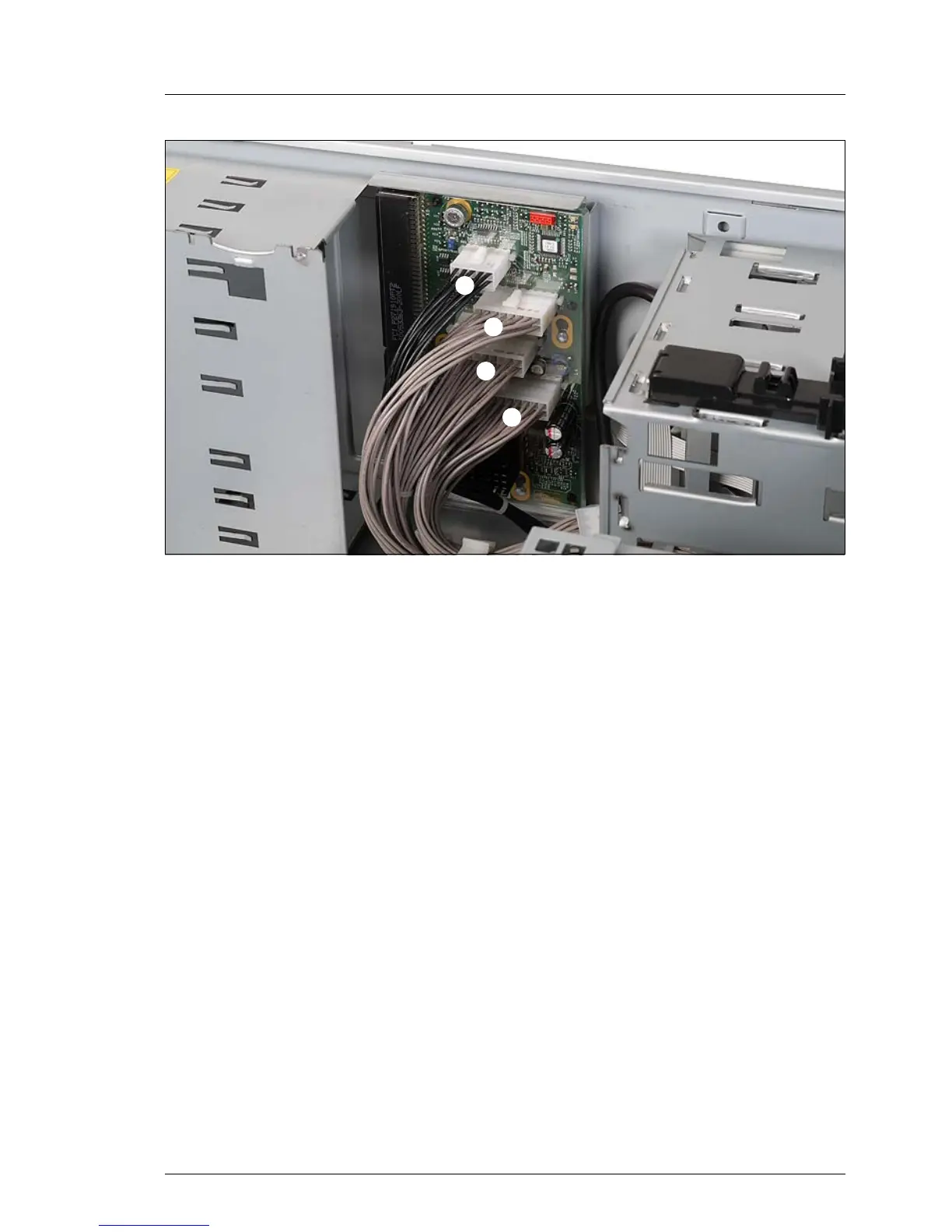

Figure 82: Power backplane - Connecting the cables
Ê Connect the power cable T26139-Y3997-V1/A3C40101525 to the connector
X3 (1) on the Power backplane.
Ê Connect the power cable T26139-Y3952-V451/A3C40101318 to the
connector X2 (2) on the Power backplane.
Ê Connect the power cable T26139-Y3986-V401/A3C40101635 to the
connector X4 (3) on the Power backplane.
Ê Connect the power cable T26139-Y3758-V8/A3C40057456 to the connector
X1 (4) on the Power backplane.
Ê Route the power cables in the cable clamps in the same way as the power
cables of the standard power supply were routed before.
Ê Connect the power cables to the system board (see the cabling plans in the
Appendix).
Ê Connect the power cables to the drives and the HDD backplanes (see the
cabling plans in the Appendix).
Ê Push both power supply modules in the bays of the PS cage until they
engage (description see the operating manual).
