FUJITSU PSWITCH User’s Guide
8 December/2018
FUJITSU PSWITCH 2048P

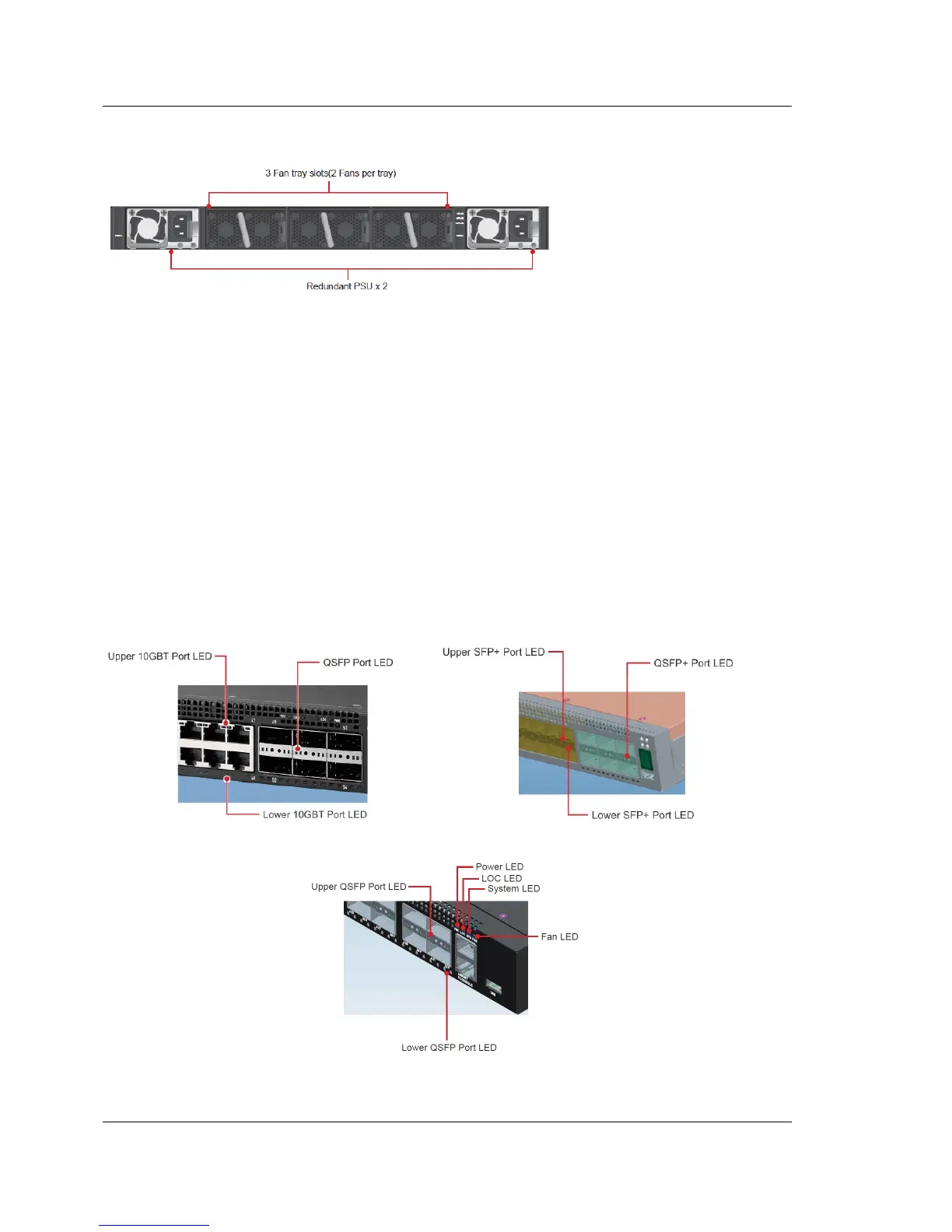

Figure 1-6: Rear View (FUJITSU PSWITCH 4032P)
The two power supply units mounted on this switch are designed to provide
1+1 redundancy, and hot-pluggable. The three fan trays (2 fans per tray) on
the rear side are not redundant and not hot-pluggable.
1.3. LED Identification
1.3.1. Front LEDs
Figure 1-7: Front LED Identification (Top Left: FUJITSU PSWITCH 2048T, Top Right: FUJITSU
PSWITCH 2048P, Bottom: FUJITSU PSWITCH 4032P)
