1.2 Names and Functions of Components
ScanSnap S510 Operator's Guide 3
Before You Start Using the ScanSnap
1
1.2 Names and Functions of Components
This section describes the names of parts and their functions.

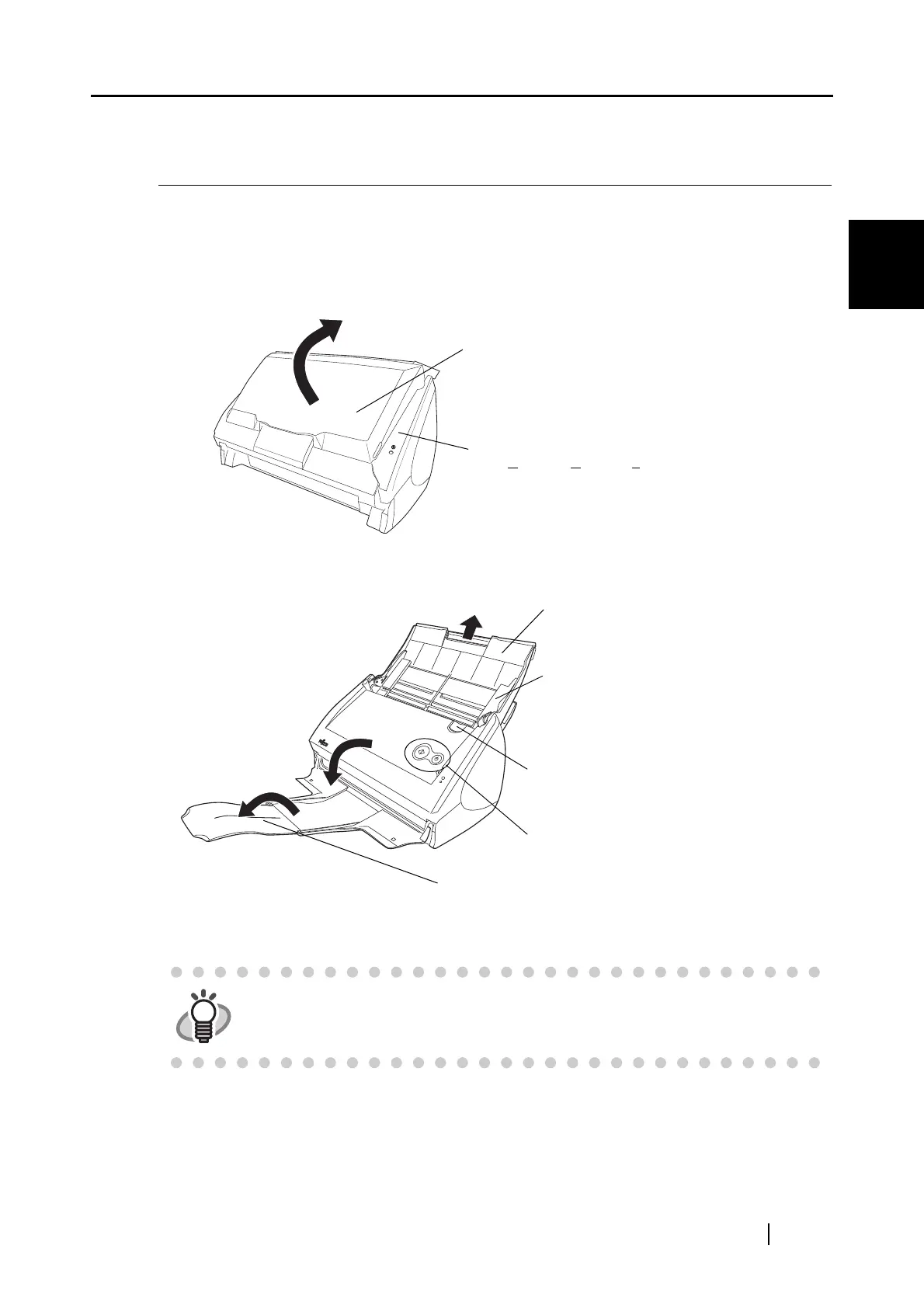

■ Front View
HINT
You can also use the ScanSnap without unfolding the Stacker.
Paper chute
Open the cover to use the scanner.
⇒Opening the cover turns on the scanner.
ADF
(ADF:Automatic Document Feeder)
Paper chute
After opening it, load the documents to be
scanned on this part.
Side guide
Adjust the side guides to the width of
documents so that the scanned images will not
be skewed.
Cover open lever
To open the ADF, pull this lever toward
you.
Operation button
⇒Refer to the next page.
Stacker
Before using the stacker, unfold and extend it as shown above.
To Next Page
