Removing the docking connector
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
Required tools:
■ Screwdriver: Phillips, size PH00

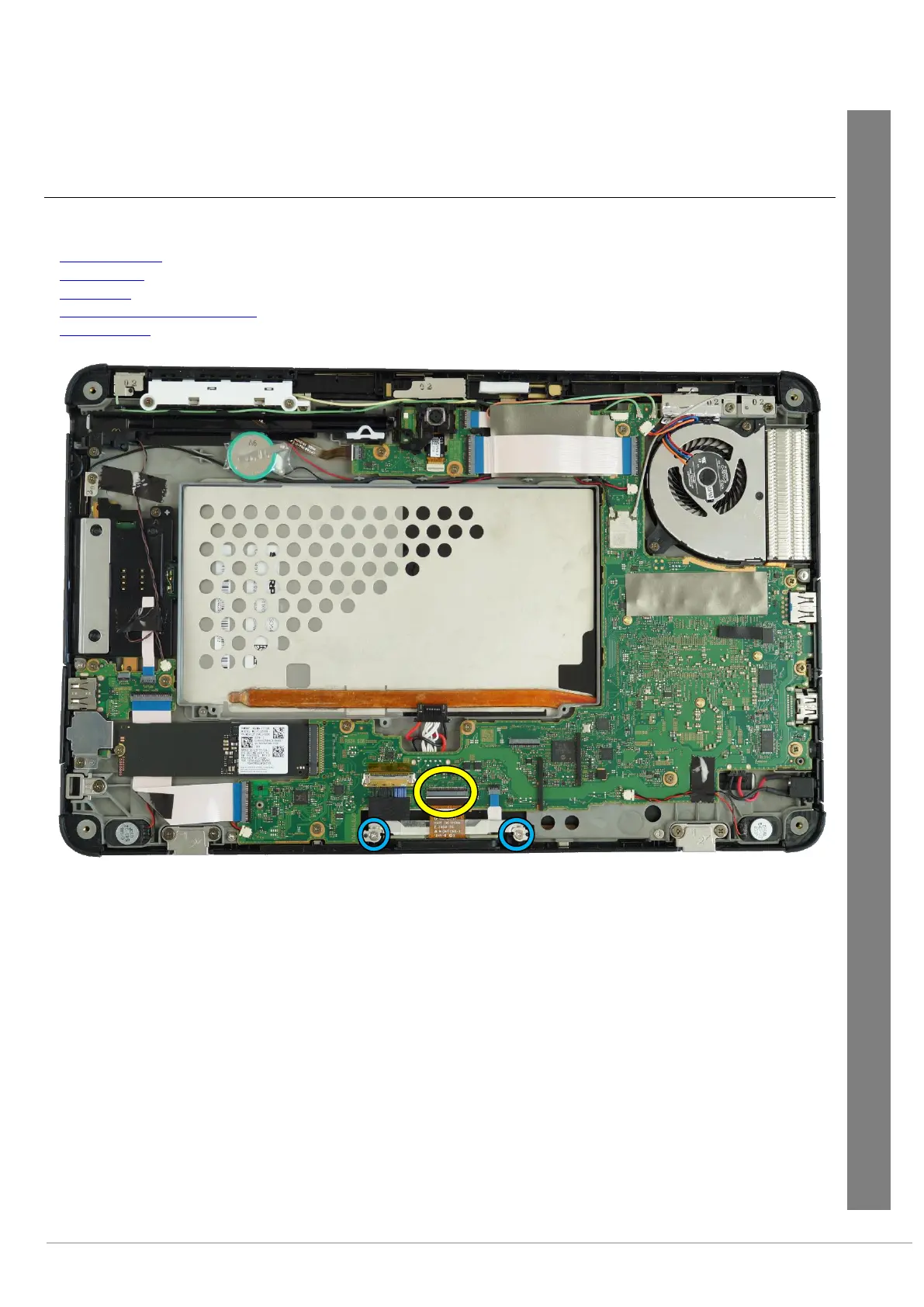

► Disconnect the flexprint cable of the docking connector (yellow circle).
► Remove the two M2XL2.5 screws (blue circles).
Service Partner only
