Fujitsu STYLISTIC Q7310 - Remove the Camera Module

Page 28 of 64
Remove the camera module
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
■ Remove LTE module
Required tools:
■ Screwdriver: Phillips, size PH00

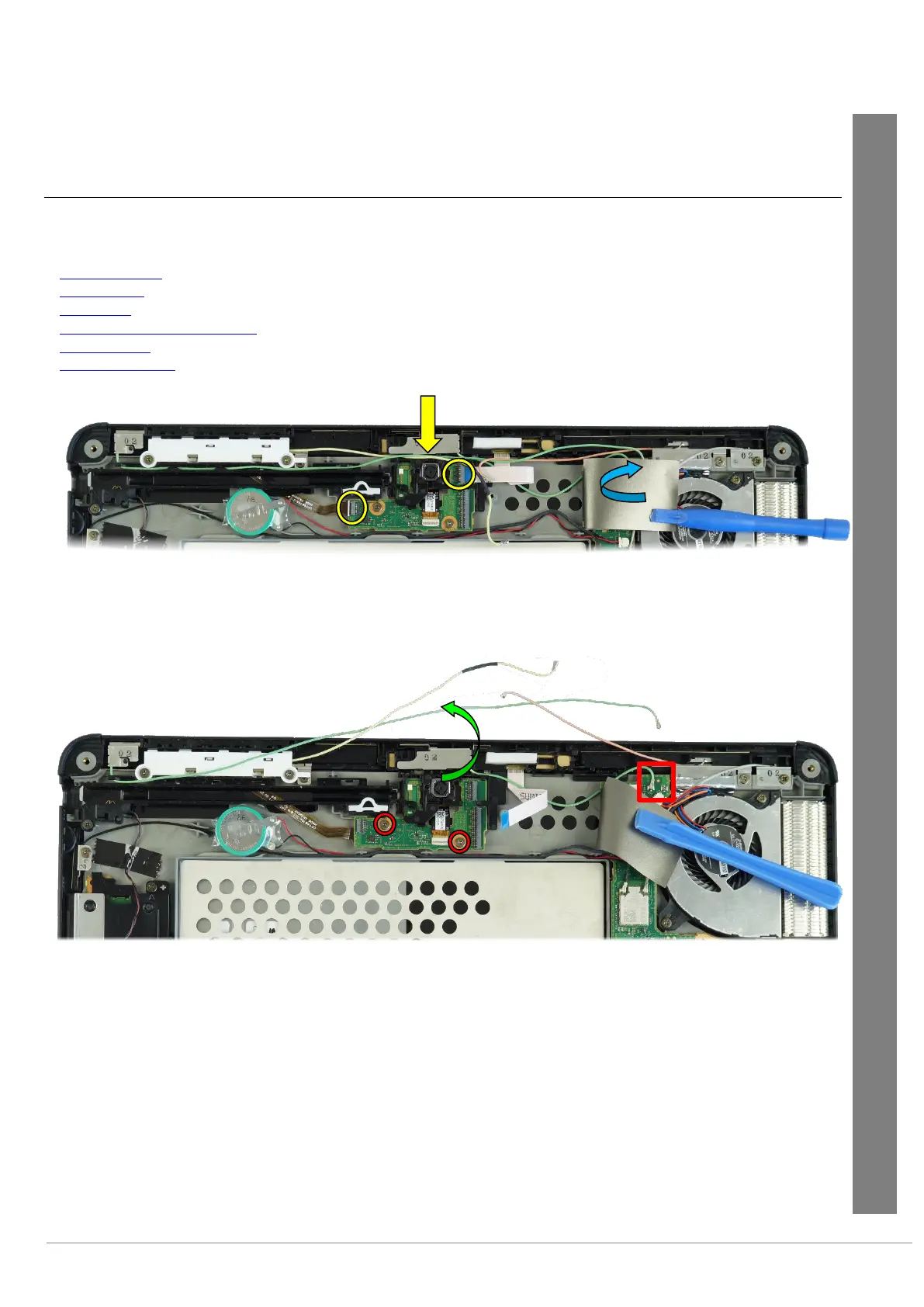

► Put the gasket aside to the right (blue arrow).
► Disconnect the flexprint cables connected to the camera sub board (yellow circles).
► The SAR antenna cable and the WWAN antenna cable run through the cable duct (yellow arrow) of the camera module.
► Disconnect the two SAR antenna cables (red rectangle) from the mainboard and lay them together with the yellow WWAN
antenna cable (“MAIN”) outside the work area (green arrow).
► Remove both M2XL3 screws (red circle).
Service Partner only
