Removing the WWAN antennas
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
■ Remove pen garage
■ Remove the application key sub board
Required tools:
■ Screwdriver: Phillips, size PH00

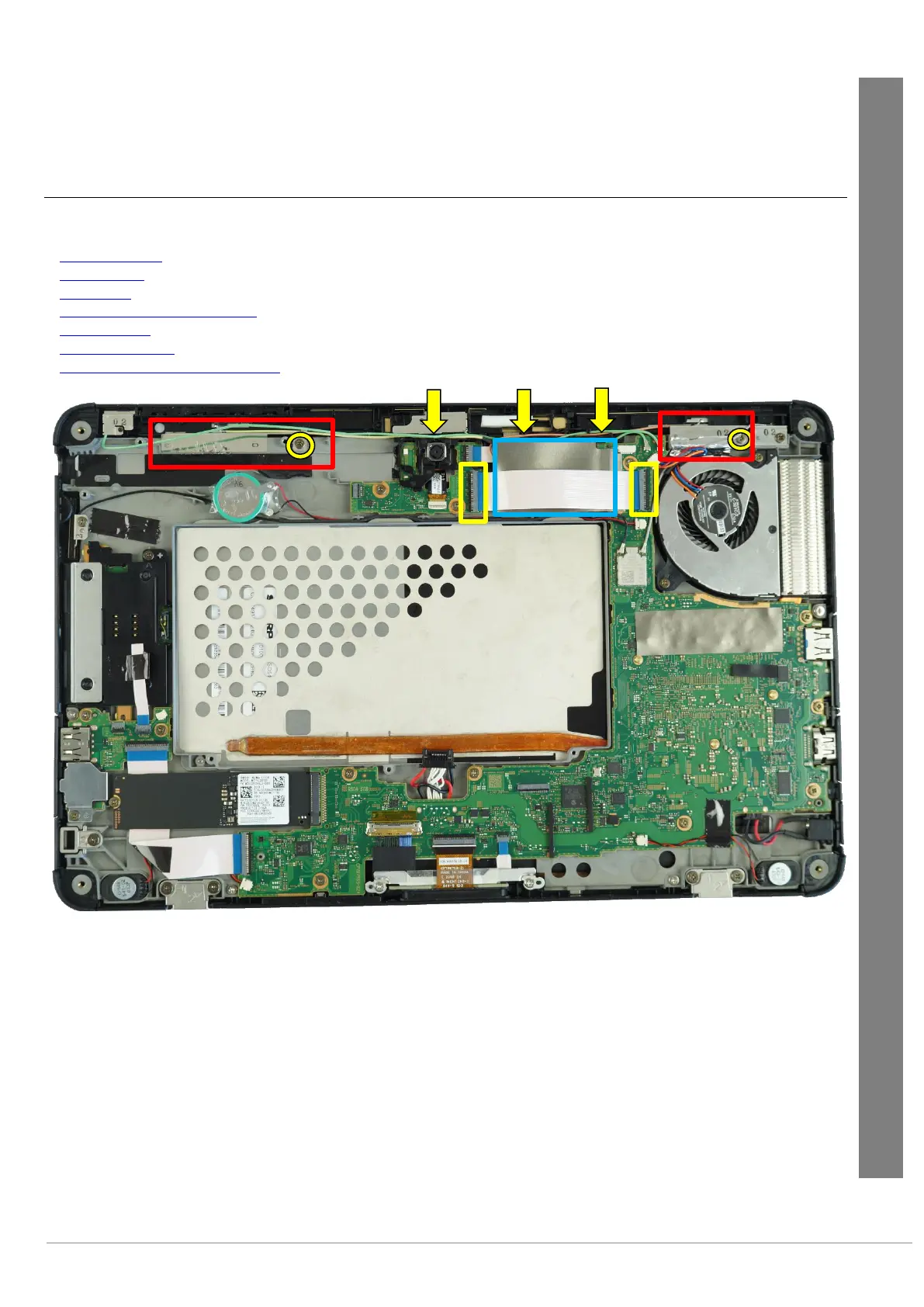

Picture 1
►
Remove the two screws M2XL3 (yellow circles).
►
The WWAN antennas are marked by red rectangles.
►
The LTE module is located under the gasket (blue rectangle).
►
Release the two connector locks (yellow rectangles) and remove the flexprint cable.
Service Partner only
