Removing the camera sub board
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
■ Remove LTE module
■ Remove the camera module
■ Removing the rear camera
Required tools:
■ Screwdriver: Phillips, size PH00
■ Plastic tool

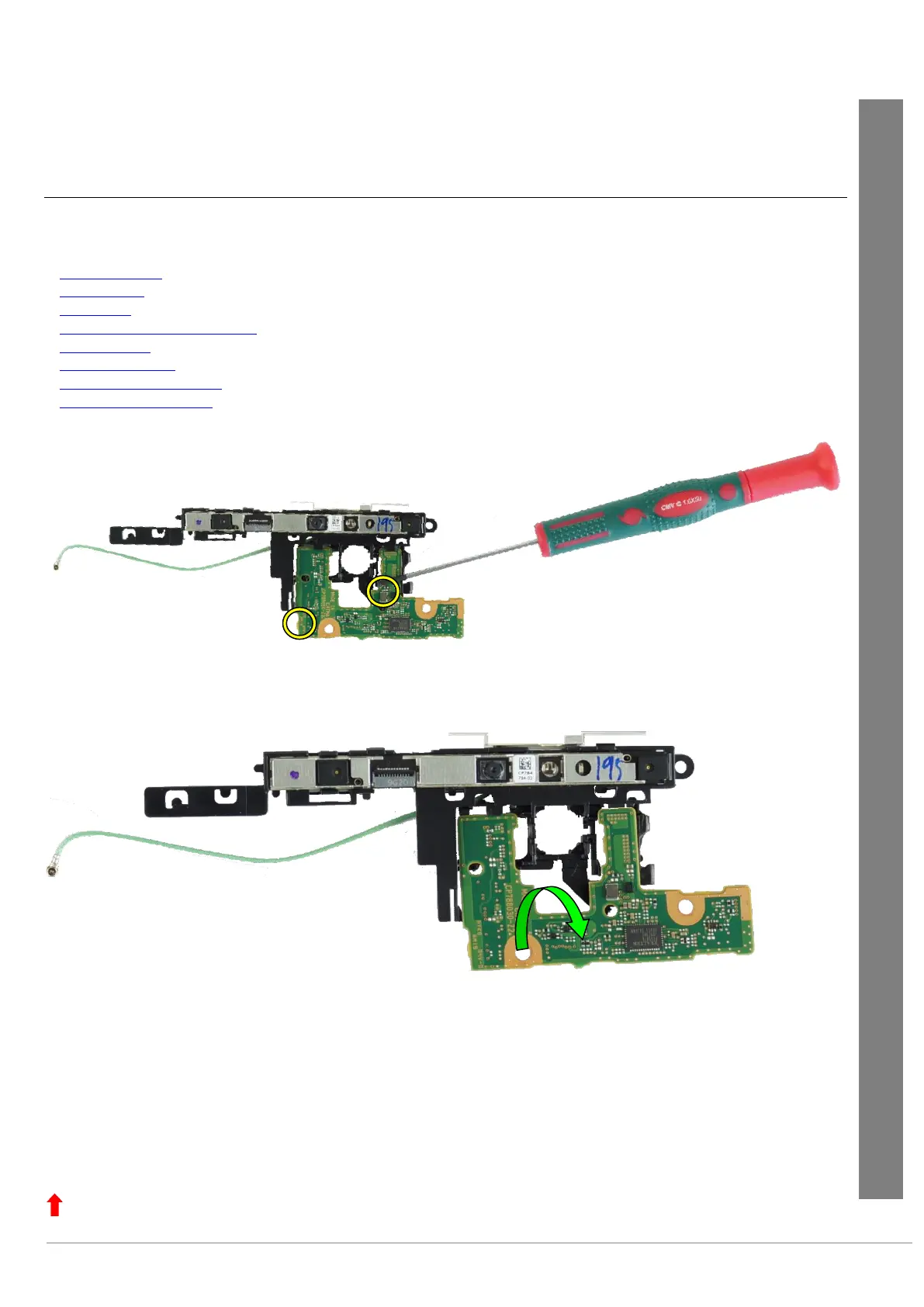

► Use a plastic tool, screwdriver or your fingers to release the two plastic brackets (yellow circles). By pressing these sideways,
the sub board can be lifted and removed.
