Remove pen garage
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
Required tools:
■ Screwdriver: Phillips, size PH00
►

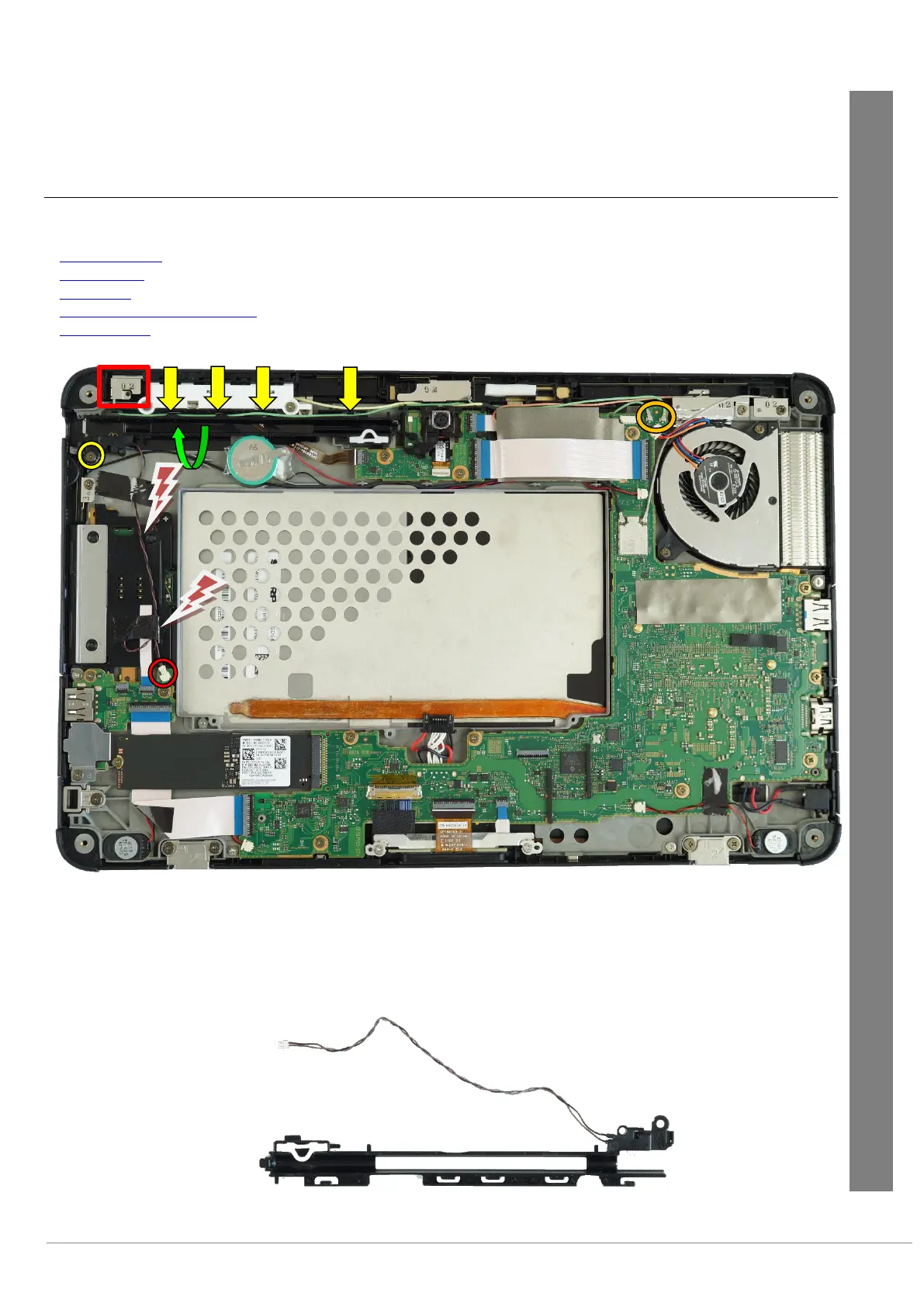

Remove the screw M2XL3 (yellow circle).
►
Remove the adhesive tape and the cable (red flashes).
► The cable of a SAR antenna (red rectangle) runs through the cable duct (yellow arrows) of the pen garage and must
therefore be disconnected (orange circle). On the following page you will find the detailed view.
► Remove the pen garage from the device (green arrow).
Service Partner only
