Remove the application button sub board
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
■ Remove pen garage
Required tools:
■ Screwdriver: Phillips, size PH00
►

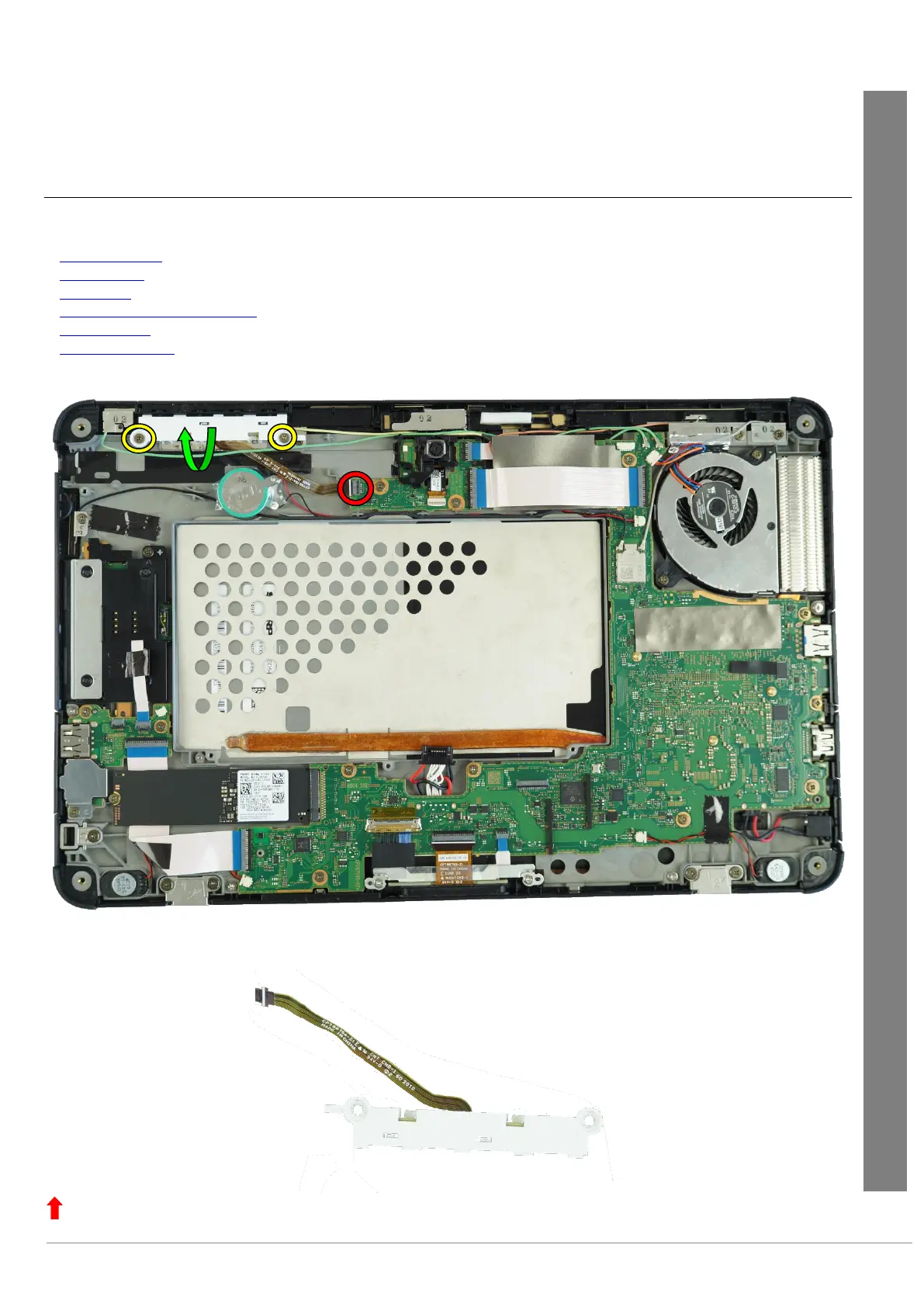

Remove the two screws M2XL3 (yellow circles).
►
Disconnect the flexprint cable (red circle).
► Take the application button sub board out of the device (see arrow direction green).
Return to Table of Contents
